BLAIR SLIM 900 IP67 LED modules / BL AIR / BL AIR SLIM OPAL

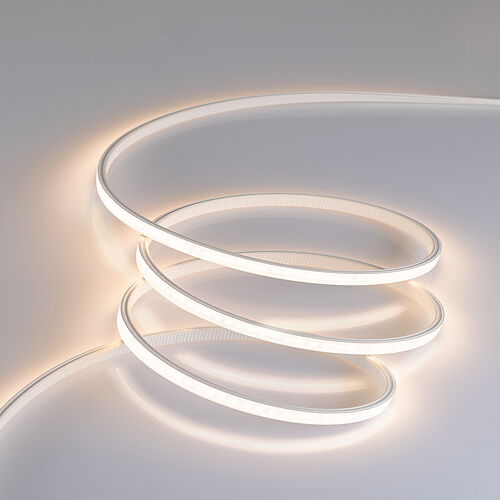

BL AIR Slim LED tube 900lm/m 24VDC 12.8W/m IP67 935 5m satinised available
Top Features
-
5000Max. length
-
IP67Degree of protection (IP)
-
900Luminous flux per meter
- IP67 protection in highly flexible silicone sheath
- Self-adhesive tape on the back for easy installation
- Extremely thin construction (width x height) 12 x 5 for subtle lines of light

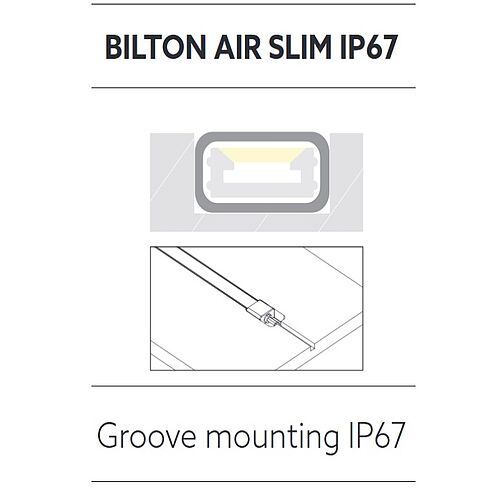

- With lateral clamping knobs ideal for groove mounting in milled areas
AIR Slim LED ligth tube, LED strip in satinised silicone sheath, 900 lm/m, wave-shaped bend to light emission surface, cable connection on one side, cable outlet at bottom, 24VDC 12.8W/m IP67 CRI>90 3500K WHITE, W 12mm x H 5mm x L 5000mm
LED module BLAIR SLIM 900 IP67
Article 101883
Linear LED light strip on a flexible circuit board. Installation via Self-adhesive tape on the backusing and appropriate mounting accessories in conjunction with Plug-&-Play connection system. Dimmable using BILTON LEDON Technology LED dimmer.
Suitable for ambient temperatures from -20 ... +45 at a service life of 50000 .

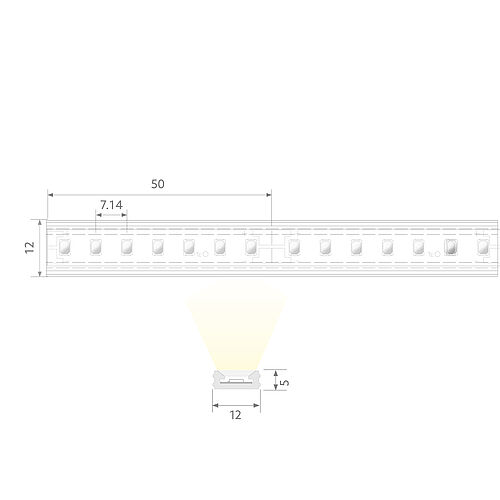

The BLAIR SLIM 900 IP67 LED-strip has a luminous flux of 900 at 12.8 , resulting in an efficiency of 70 . At a nominal voltage of 24 DC on the connection, a maximum module length of 5000 can be achieved. In terms of lighting, the module has a colour temperature of 3500 and a beam angle of 120 . All this with a colour rendering index of >90 and a Binning selection based on SDCM3 (MacAdams). The light strip can be separated every 50 , resulting in a LED distance of 7.14 . Degree of protection IP67
Smallest possible bending radius 200
Dimension (L x W x H): 5020 x 12 x 5
| Mechanical data | |
|---|---|
| Width | 12 |
| Length | 5020 |
| Height/depth | 5 |
| Height | 5 |
| Colour | White |
| Model | Schlauch |
| Self-adhesive | yes |
| Lamp type | LED nicht austauschbar |
| Distance | 7.14 |
| Distance relating to | LED zu LED |
| Degree of protection (IP) | IP67 |
| Length of particular segments | 50 |
| Lowest bending radius | 200 |

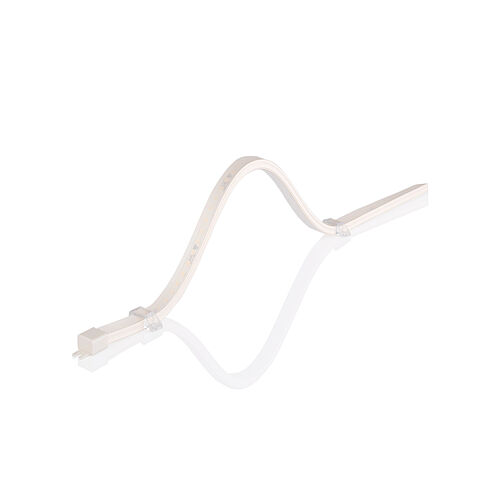

| With connection set | yes |
| With end piece | yes |
| Number of lamps per meter | 140 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Lamp voltage | 24 |
| Imput voltage range | 23 - 25 |
| Lamp power per meter | 12.8 |
| Overall efficiency | 70 |
| Light technical data | |
|---|---|
| Beam angle | 120 |
| Colour rendering index CRI | >90 |
| Colour temperature | 3500 |
| Colour of light | White |
| Luminous flux per meter | 900 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Connection | |
|---|---|
| Conductor cross section | 0.5 |
| Number of poles | 2 |
| Max. length | 5000 |
| Temperature technical data | |
|---|---|
| Ambient/storage temperature | - 5 ... + 55 |
| Operation temperature at Tc | - 5 ... + 60 |
| Ambient temperature during operating | - 20 ... + 45 |
| Rated life time L80/B10 at 25 °C | 50000 |
| Packaging information | |
|---|---|
| State of origin | AT |
| Customs tariff number | 94054039 |
| Net weight | 265 g |
| Gross weight | 385 g |
| Gross width | 330 mm |
| Gross height | 27 mm |
| Gross length | 330 mm |
| Net width | 12 mm |
| Net height | 5 mm |
| Net length | 5020 mm |
* Information about the electrical and lighting technology measurements: Performance data measured after 1 min. at 25 °C ambient temperature and a light colour of 4,000 K (or RGB). These values can have a tolerance value of -/+ 15%. Module length at 24 V input voltage at the module and luminous flux drop 10% over the specified length.
