BL COR Pure 500 BL Shine LED-Strip / BL COR Pure / BL COR Pure
BL COR Pure LED strip 480lm/m 24VDC 4.8W/m IP20 830 50m available
Top Features
-
24Lamp voltage
-
5000Max. length
-
>80Colour rendering index CRI
-
480Luminous flux per meter
- Luminance efficiency up to 100
- Life span up to 36000
- Separability 100
LED strip COR Pure 480 lm/m 24VDC 4.8W/m 100lm/W IP20 CRI>80 3000K WHITE, Colors and BLT label, without connection cable, 50 meters/box

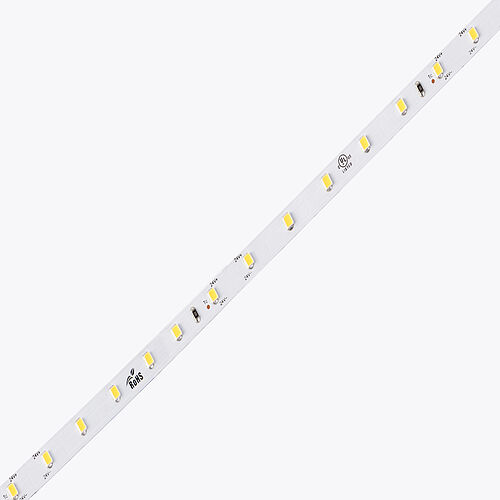

LED module BL COR Pure 500
Article 171619
The BL COR Pure 500 LED-strip has a luminous flux of 480 at 4.8 , resulting in an efficiency of 100 . At a nominal voltage of 24 DC on the connection, a maximum module length of 5000 can be achieved. In terms of lighting, the module has a colour temperature of 3000 and a beam angle of 117 . All this with a colour rendering index of >80 and a Binning selection based on SDCM3 (MacAdams). The light strip can be separated every 100 , resulting in a LED distance of 16.67 . Degree of protection IP20

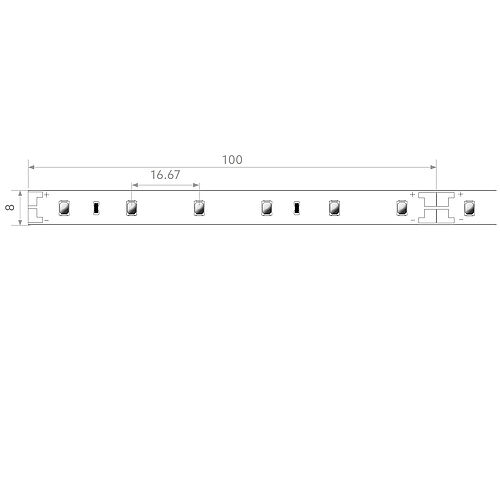

Dimension (L x W x H): 50000 x 8 x 1.5
| Mechanical data | |
|---|---|
| Width | 8 |
| Length | 50000 |
| Height/depth | 1.5 |
| Height | 1.5 |
| Colour | White |
| Model | Band |
| Self-adhesive | yes |
| Lamp type | LED nicht austauschbar |
| Distance | 16.67 |
| Distance relating to | LED zu LED |
| Degree of protection (IP) | IP20 |
| Length of particular segments | 100 |
| Lowest bending radius | 30 |
| Number of lamps per meter | 60 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Lamp voltage | 24 |
| Lamp power per meter | 4.8 |
| Overall efficiency | 100 |
| Light technical data | |
|---|---|
| Beam angle | 117 |
| Colour rendering index CRI | >80 |
| Rated luminous flux according to IEC 62722-2-1 | 480 |
| Colour temperature | 3000 |
| Colour of light | White |
| Luminous flux per meter | 480 |
| Energy efficiency class of teh built-in lamp | F |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Connection | |
|---|---|
| Number of poles | 2 |
| Max. length | 5000 |
| Temperature technical data | |
|---|---|
| Ambient/storage temperature | 0 ... + 60 |
| Ambient temperature during operating | - 25 ... + 40 |
| Rated life time L70/B50 at 25 °C | 36000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 9405423990 |
| Net weight | 920 g |
| Gross weight | 920 g |
| Net width | 8 mm |
| Net height | 1.5 mm |
| Net length | 50000 mm |
* Information about the electrical and lighting technology measurements: Performance data measured after 1 min. at 25 °C ambient temperature and a light colour of 4,000 K (or RGB). These values can have a tolerance value of -/+ 10% (or -/+ 15 %at ECO / TWO / RGB / AIR ). Module length at 24 V input voltage at the module and luminous flux drop 10% over the specified length.
