BL Panel Comfort+ EOL LED-Leuchten EOL / BL Panels EOL

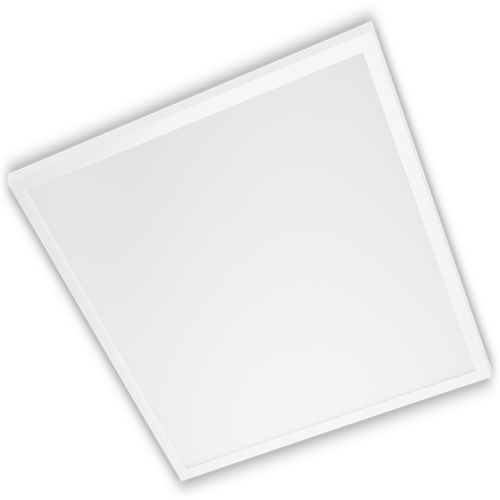

BL Panel Comfort + 620mm 4000lm 33W 90D 830-865 white IP44 Colour Change 2x700mA available
Top Features
-
WhiteColour housing
-
Surface / Installation / SuspensionMounting method
-
Tuneable whiteColour of light
-
<19Unified Glare Ratio (UGR)
- LED panel light with microprismatic layer for modular ceilings with concealed or visible support system
- Best light quality with precise glare control and homogeneous light distribution over the entire light emission surface
- Glare limitation (UGR) <19
LED panel with colour change, 4,000 lumens, 33W, 90° direct beam, CRI >80, 3,000 - 6,500 Kelvin, IP44, protection class III, non-dimmable, white aluminium housing, without power supply unit, dimensions: L 620 x W 620 x H 8mm
BL Panel Comfort+ EOL
Article 710039
LED panel for installation as Surface / Installation / Suspension - made of high-quality, White coated frames made of sonstige . Microprismatic layer for modular ceilings with concealed or visible support system. Very flat and compact design with a total height of 8 . Best light quality with precise glare control 19 and homogeneous light distribution across the entire light emission surface, service life of , luminous flux 4000 ; Current max. , color rendering >80 ; light color Tuneable white , color temperature 3000 - 6500 ; beam angle 90 , mounting set for Surface / Installation / Suspension must be ordered separately.
Dimensions (L x W x H): 620 x 620 x 8
| Mechanical data | |
|---|---|
| Material housing | sonstige |
| Colour housing | White |
| Width | 620 |
| Length | 620 |
| Height/depth | 8 |
| Mounting method | Surface / Installation / Suspension |
| Lamp type | LED nicht austauschbar |
| Material of the cover | Plastic opal |
| Degree of protection (IP) | IP44 |
| Control gear included | nein |
| Unified Glare Ratio (UGR) | <19 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Light technical data | |
|---|---|
| Beam angle | 90 |
| Colour rendering index CRI | >80 |
| Light exit | direkt |
| Light distribution | symmetrical |
| Rated luminous flux according to IEC 62722-2-1 | 4000 |
| Colour temperature | 3000 - 6500 |
| Colour of light | Tuneable white |
| Temperature technical data | |
|---|---|
| Ambient temperature during operating | - 20 ... + 40 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Net weight | 4050 g |
| Gross weight | 4500 g |
| Net width | 620 mm |
| Net height | 8 mm |
| Net length | 620 mm |
