BLECP 2000 >80 LED modules / Semi-Professional / Indoor
BLECP2000024DC18120827000W05 available
Top Features
-
24Lamp voltage
-
50Length of particular segments
-
120Number of lamps per meter
-
1840Luminous flux per meter
- Long line lengths and better stability due to double layer
- Guaranteed LED properties with guaranteed patent protection
- Current regulation via transistors
- To create a homogeneous light image, the band is populated with ###attribute.6040### LEDs per meter
BL ECO+ 2000 LED strip 24VDC 18,1W/m IP20 CRI>80 2700K WHITE 5m
LED module BLECP 2000 >80
Article 171216

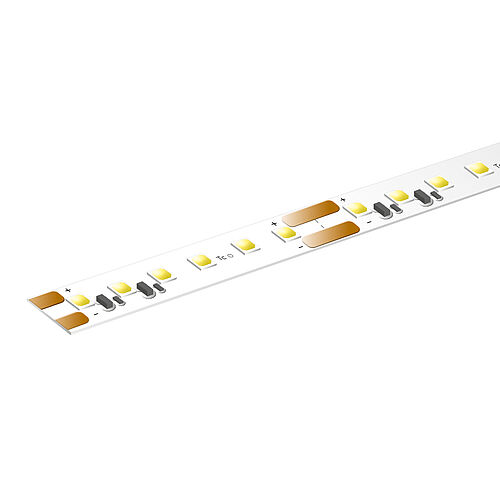

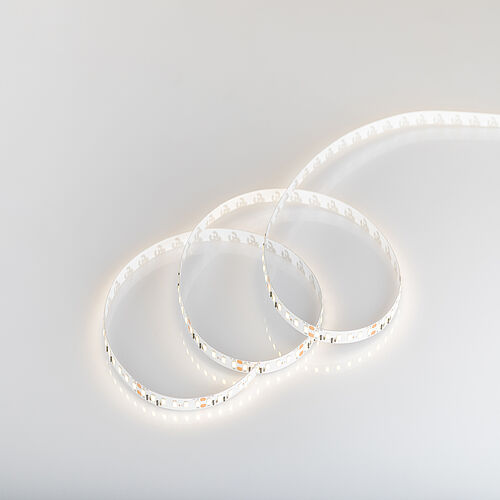

Linear LED light strip on a flexible circuit board. Installation using self-adhesive heat-conducting adhesive tape. Dimmable using BILTON LEDON Technology LED dimmer.
Suitable for ambient temperatures from -20 ... +45 at a service life of 60000 .

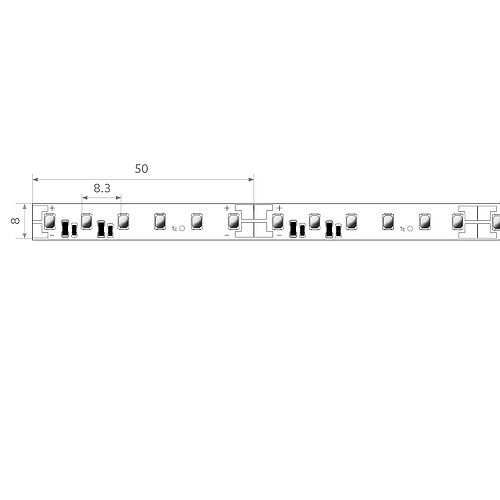

The BLECP 2000 >80 LED-strip has a luminous flux of 1840 at 18.1 , resulting in an efficiency of 102 . At a nominal voltage of 24 DC on the connection, a maximum module length of 8000 can be achieved. In terms of lighting, the module has a colour temperature of 2700 K and a beam angle of 120 . All this with a colour rendering index of >80 and a Binning selection based on SDCM3 (MacAdams). The light strip can be separated every 50 , resulting in a LED distance of 8.3 . Degree of protection IP20
Dimension (L x W x H): 5000 x 8 x 1.2
| Mechanical data | |
|---|---|
| Width | 8 |
| Length | 5000 |
| Height/depth | 1.6 |
| Height | 1.2 |
| Colour | White |
| Model | Band |
| Self-adhesive | yes |
| Lamp type | LED nicht austauschbar |
| Distance | 8.3 |
| Distance relating to | LED zu LED |
| Degree of protection (IP) | IP20 |
| Length of particular segments | 50 |
| Lowest bending radius | 20 |
| With connection set | yes |
| With end piece | nein |
| Number of lamps per meter | 120 |
| Electrical data | |
|---|---|
| Protection class | ohne |
| Voltage type | DC |
| Lamp voltage | 24 |
| Lamp power per meter | 18.1 |
| Overall efficiency | 102 |
| Light technical data | |
|---|---|
| Beam angle | 120 |
| Colour rendering index CRI | >80 |
| Colour temperature | 2700 K |
| Colour of light | White |
| Luminous flux per meter | 1840 |
| Energy efficiency class provided exchangeable built-in lamp | F |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Connection | |
|---|---|
| Conductor cross section | 0.5 |
| Number of poles | 2 |
| Max. length | 8000 |
| Temperature technical data | |
|---|---|
| Ambient/storage temperature | - 5 ... + 55 |
| Operation temperature at Tc | - 5 ... + 60 |
| Ambient temperature during operating | - 20 ... + 45 |
| Rated life time L80/B50 at 25 °C | 60000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 94054239 |
| Net weight | 9.8 g |
| Gross weight | 35 g |
| Gross width | 200 mm |
| Gross height | 18 mm |
| Gross length | 200 mm |
| Net width | 8 mm |
| Net height | 1.6 mm |
| Net length | 1000 mm |
* Information about the electrical and lighting technology measurements: Performance data measured after 1 min. at 25 °C ambient temperature and a light colour of 4,000 K (or RGB). These values can have a tolerance value of -/+ 15%. Module length at 24 V input voltage at the module and luminous flux drop 10% over the specified length
