BLPSI 100 Power Supplies / Outdoor / BLPSI
Article no.: 170167
This product is only available for a limited time.
Replacement product
BLPSI230AC100024DC0400067X available
Top Features
-
24Output voltage range
-
100Output power range
-
IP67Degree of protection (IP)

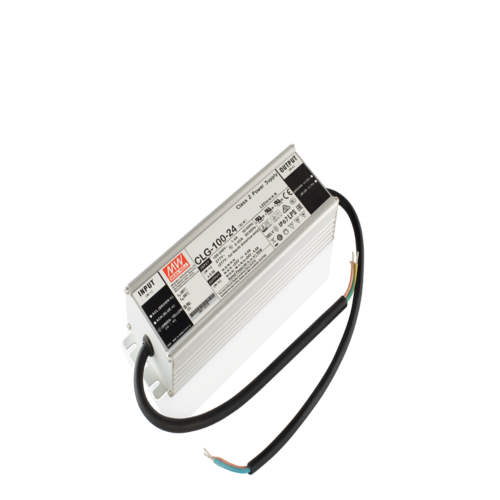

BILTON PS IP 230VAC 100W 24VDC 4000mA IP67
BILTON BLPSI 100
Article 170167
The power supply can be used up to 100 output power and 24 output voltage. The supply voltage of the power supply is and has a IP67 protection class and protection class II .
Dimension (L x W x H): 220 x 68 x 38.8
| Mechanical data | |
|---|---|
| Housing | Metallgehäuse |
| Width | 68 |
| Length | 220 |
| Height | 38.8 |
| Model | Static |
| Control signal | ohne |
| Suitable for outdoor use | yes |
| Degree of protection (IP) | IP67 |
| Electrical data | |
|---|---|
| Protection class | II |
| Control signal | ohne |
| Output voltage range | 24 |
| Output power range | 100 |
| Output current range | 4000 |
| Type of dimming | not dimmable |
| Suitable for constant current | yes |
| Suitable for constant voltage | yes |
| Suitable for DC-voltage (primary side) | yes |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 85043180 |
| Net weight | 1116.667 g |
| Gross weight | 1200 g |
| Gross width | 88 mm |
| Gross height | 49 mm |
| Gross length | 251 mm |
| Net width | 68 mm |
| Net height | 38.8 mm |
| Net length | 222 mm |
