BL AIR SIDE RGB BL Shine LED-Strip / BL ONE Comfort / IP-Protected / BL AIR / BL AIR SIDE
BL AIR Side LED ligth tube 170lm/m 24VDC 14.4W/m IP67 RGB 5m available
Top Features
-
24Lamp voltage
-
5020Max. length
-
ohneColour rendering index CRI
-
170Luminous flux per meter
- Homogeneously luminous light line without visible light points

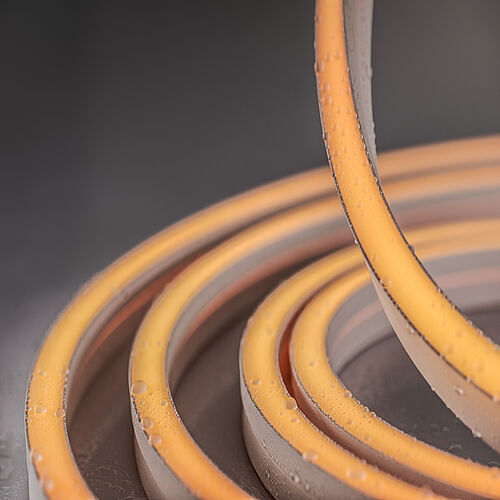

- IP67 -protection in highly flexible silicone jacket

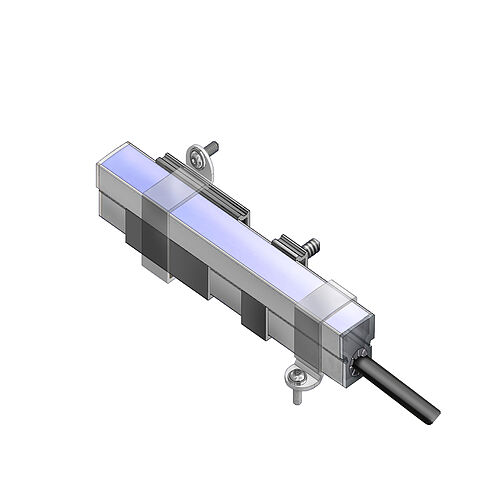

- New connection: the end caps close straight to the profile
AIR SIDE LED ligth tube, LED strip in silicone sheath, 170 lm/m, curved bend to light emission surface, cable connection on one side, straight cable outlet, 24VDC 14.4W/m IP67 RGB COLOR 5m
LED module BL AIR SIDE RGB
Article 102145

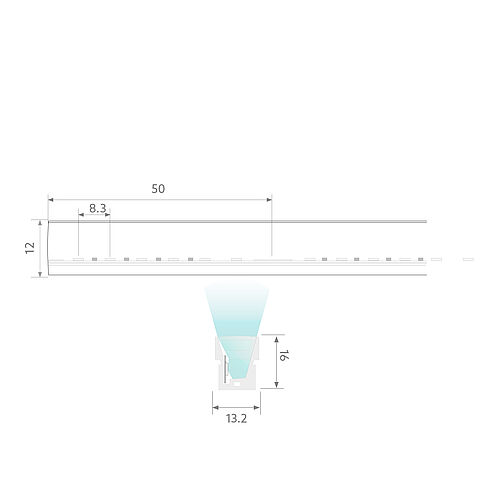

The BL AIR SIDE RGB LED light tube has a luminous flux of 170 at a power of 14.4 , which results in an efficiency of 12 . With a nominal voltage of 24 DC at the connection, a maximum module length of 5020 can be achieved. In terms of lighting, the module has a color temperature of RGB and a beam angle of 120 . All with a color rendering index of ohne and a binning selection according to SDCM3 (MacAdams). The light strip can be divided every 50 , resulting in an LED spacing of 8.3 . Protection class IP67 , Smallest possible bending radius 200 . At an ambient temperature of 85°C, a service life of 50,000 hours can still be guaranteed. Up to 95°C, the service life is 30,000 hours and at temperatures of 100°C it is still 16,000 hours (L70B50). Dimensions (L x W x H): 5020 x 13.2 x 16
| Mechanical data | |
|---|---|
| Width | 13.2 |
| Length | 5020 |
| Height/depth | 16 |
| Height | 16 |
| Colour | White |
| Model | Schlauch |
| Self-adhesive | nein |
| Lamp type | LED nicht austauschbar |
| Distance | 8.3 |
| Distance relating to | LED zu LED |
| Degree of protection (IP) | IP67 |
| Length of particular segments | 50 |
| Lowest bending radius | 200 |
| Number of lamps per meter | 120 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Lamp voltage | 24 |
| Imput voltage range | 23 - 25 |
| Lamp power per meter | 14.4 |
| Overall efficiency | 12 |
| Light technical data | |
|---|---|
| Beam angle | 120 |
| Colour rendering index CRI | ohne |
| Colour temperature | RGB |
| Colour of light | RGB |
| Luminous flux per meter | 170 |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Connection | |
|---|---|
| Conductor cross section | 0.5 |
| Number of poles | 2 |
| Max. length | 5020 |
| Temperature technical data | |
|---|---|
| Ambient/storage temperature | - 20 ... + 55 |
| Ambient temperature during operating | - 20 ... + 55 |
| Rated life time L80/B10 at 25 °C | 50000 |
| Packaging information | |
|---|---|
| State of origin | AT |
| Customs tariff number | 94054039 |
| Net weight | 609 g |
| Gross weight | 609 g |
| Gross width | 330 mm |
| Gross height | 27 mm |
| Gross length | 330 mm |
| Net width | 13.2 mm |
| Net height | 16 mm |
| Net length | 5020 mm |
* Information about the electrical and lighting technology measurements: Performance data measured after 1 min. at 25 °C ambient temperature and a light colour of 4,000 K (or RGB). These values can have a tolerance value of -/+ 15%. Module length at 24 V input voltage at the module and luminous flux drop 10% over the specified length.
