COR Pure Free 2000 BL Shine LED-Strip / BL COR Pure / COR Pure Free

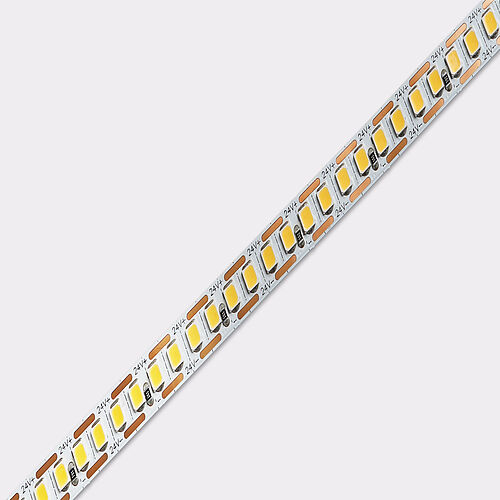

BL COR Pure Free LED strip 2285lm/m 24VDC 16.8W/m IP20 930 5m available
Top Features
-
5Distance
-
LED zu LEDDistance relating to
-
5Length of particular segments
- LED strip, all ###attributes.6027### separable
- without soldering connection
- ###attributes.169###-Single LED per cut for more flexible application
LED strip light Freecut 2285 lm/m 24VDC 16.8W/m 136lm/W IP20 CRI>90 3000K, Separability 5 mm, one-sided connection cable 50 cm, WHITE Colors and BLT label 5 meters
LED module COR Pure Free 2000
Article 171858
Linear LED light strip on a flexible circuit board. Installation using self-adhesive heat-conducting adhesive tape.
Suitable for ambient temperatures from -25 ... +40 at a service life of 60000 .
The COR Pure Free 2000 LED-strip has a luminous flux of 2285 at 16.8 , resulting in an efficiency of 136 . At a nominal voltage of 24 DC on the connection, a maximum module length of 5000 can be achieved. In terms of lighting, the module has a colour temperature of 3000 and a beam angle of 119 . All this with a colour rendering index of >90 and a Binning selection based on SDCM3 (MacAdams). The light strip can be separated every 5 , resulting in a LED distance of 5 . Degree of protection IP20
Dimension (L x W x H): 5000 x 8 x 1.5
| Mechanical data | |
|---|---|
| Width | 8 |
| Length | 5000 |
| Height/depth | 1.5 |
| Height | 1.5 |
| Colour | White |
| Model | Band |
| Self-adhesive | yes |
| Lamp type | LED nicht austauschbar |
| Distance | 5 |
| Distance relating to | LED zu LED |
| Degree of protection (IP) | IP20 |
| Length of particular segments | 5 |
| Lowest bending radius | 30 |
| Number of lamps per meter | 200 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Lamp voltage | 24 |
| Imput voltage range | 23 - 25 |
| Lamp power per meter | 16.8 |
| Overall efficiency | 136 |
| Light technical data | |
|---|---|
| Beam angle | 119 |
| Colour rendering index CRI | >90 |
| Colour temperature | 3000 |
| Colour of light | White |
| Luminous flux per meter | 2285 |
| Energy efficiency class of teh built-in lamp | E |
| Colour consistency (McAdam ellipse) | SDCM3 |
| Connection | |
|---|---|
| Number of poles | 2 |
| Max. length | 5000 |
| Temperature technical data | |
|---|---|
| Ambient temperature during operating | - 25 ... + 40 |
| Rated life time L70/B50 at 25 °C | 60000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 9405423990 |
| Net weight | 161 g |
| Gross weight | 161 g |
| Net width | 8 mm |
| Net height | 1.5 mm |
| Net length | 5000 mm |
* Information about the electrical and lighting technology measurements: Performance data measured after 1 min. at 25 °C ambient temperature and a light colour of 4,000 K (or RGB). These values can have a tolerance value of -/+ 10% (or -/+ 15 %at ECO / TWO / RGB / AIR ). Module length at 24 V input voltage at the module and luminous flux drop 10% over the specified length.
