COR Pure Tone BL Shine LED-Strip / BL COR Pure / COR Pure TONE
BL COR Pure Tone LED strip 700lm/m 24VDC 19.2W/m IP20 RGB+830 5m available
Top Features
-
24Lamp voltage
-
5000Max. length
-
>80Colour rendering index CRI
-
700Luminous flux per meter
- RGB+3000 LED strip
- High quality FPC
- Self-adhesive with 3M adhesive tape
LED strip RGBW 700 lm/m 24VDC, 19.2W/m, IP20, RGB+3000K, Colors and BLT label, one-sided connection cable 50 cm, 5 meters
LED module COR Pure Tone
Article 171853
Linear RGBW LED light strip on a flexible circuit board. Installation using self-adhesive heat-conducting adhesive tape. Dimmable using BILTON LEDON Technology LED dimmer.
Suitable for ambient temperatures from -20 ... +40 at a service life of 60000 .

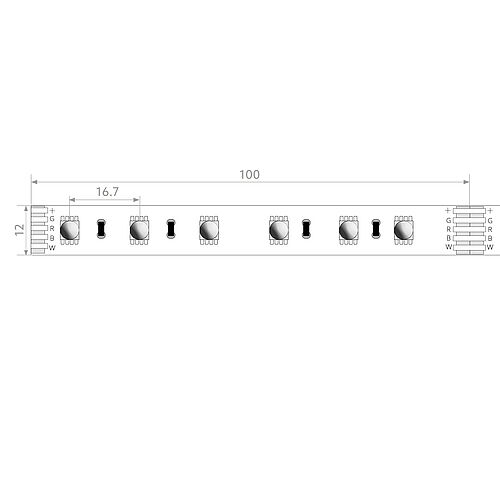

The COR Pure Tone LED-strip has a luminous flux of 700 at 19.2 , resulting in an efficiency of 36 . At a nominal voltage of 24 DC on the connection, a maximum module length of 5000 can be achieved. In terms of lighting, the module has a colour temperature of RGB+3000 and a beam angle of 125 . White light component with a colour rendering index of >80 . The light strip can be separated every 100 , resulting in a LED distance of 16.67 . Degree of protection IP20
Dimension (L x W x H): 5000 x 12 x 2.1
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 9405423990 |
| Net weight | 147 g |
| Gross weight | 147 g |
| Net width | 12 mm |
| Net height | 2.1 mm |
| Net length | 5000 mm |
* Information about the electrical and lighting technology measurements: Performance data measured after 1 min. at 25 °C ambient temperature and a light colour of 4,000 K (or RGB). These values can have a tolerance value of -/+ 10% (or -/+ 15 %at ECO / TWO / RGB / AIR ). Module length at 24 V input voltage at the module and luminous flux drop 10% over the specified length.
