Ceiling- & Wall luminiare Trend BL Shine LED luminaires / BL Ceiling & wall luminaires / Ceiling & wall luminaires Trend
Article no.: 731024

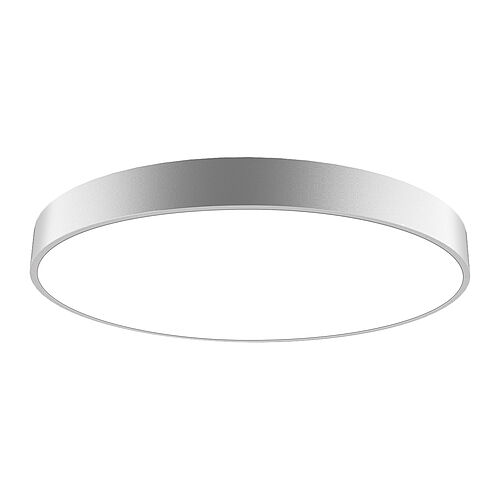

BL CWL Trend+ surface/pendant lum. 585mm 6600lm 60W 90D/I 830-840 white DALI available
Top Features
-
WhiteColour housing
-
DALIType of dimming
-
6600Rated luminous flux according to IEC 62722-2-1
- Color temperature selectable via dip switch 3000-4000
- Light emission direct/indirect
- Housing Aluminium White
LED CWL pendant luminaire, 6,600 lumens, 60W, 90° direct/indirect illumination, CRI >80, 3,000 - 4,000 Kelvin, IP20, protection class I, DALI dimmable, UGR
Ceiling- & Wall luminiare Trend
Article 731024
Modern surface lights with a wide range of possible uses for representative environments. Whether as a wall or ceiling-mounted version with direct/indirect light component. Mounting type . The color temperature 3000-4000 can be selected via dip switch.
Housing Aluminium White , Cover material Plastic structured , Luminous flux 6600 with an efficiency of 110 and a color rendering of >80 , Total power 60 , Beam angle 90 , Service life 50000 , Protection class IP20 , UGR <19
Dimensions: Diameter 585 , Height 91
| Mechanical data | |
|---|---|
| Material housing | Aluminium |
| Colour housing | White |
| Width | 585 |
| Length | 585 |
| Height | 91 |
| Diameter | 585 |
| With movement sensor | nein |
| Type of control gear | LED - Betriebsgerät stromgesteuert |
| Lamp type | LED nicht austauschbar |
| Material of the cover | Plastic structured |
| Degree of protection (IP) | IP20 |
| Suspension included in delivery | nein |
| Unified Glare Ratio (UGR) | <19 |
| Electrical data | |
|---|---|
| Protection class | I |
| Voltage type | AC |
| Nominal voltage | 200 - 240 |
| Type of dimming | DALI |
| Overall efficiency | 110 |
| Max. system power | 60 |
| Power factor | 0.9 |
| Light technical data | |
|---|---|
| Beam angle | 90 |
| Colour rendering index CRI | >80 |
| Light exit | direct / indirect |
| Light distribution | symmetrical |
| Rated luminous flux according to IEC 62722-2-1 | 6600 |
| Colour temperature | 3000 - 4000 |
| Colour of light | White |
| Temperature technical data | |
|---|---|
| Rated life time L90/B50 at 25 °C | 50000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 94051098 |
| Net weight | 6040 g |
| Gross weight | 7200 g |
| Gross width | 630 mm |
| Gross height | 130 mm |
| Gross length | 630 mm |
| Net width | 585 mm |
| Net height | 91 mm |
| Net length | 585 mm |
