Ceiling & wall luminaires Trend LED-Leuchten EOL / Decken- und Wandleuchten (CWL)

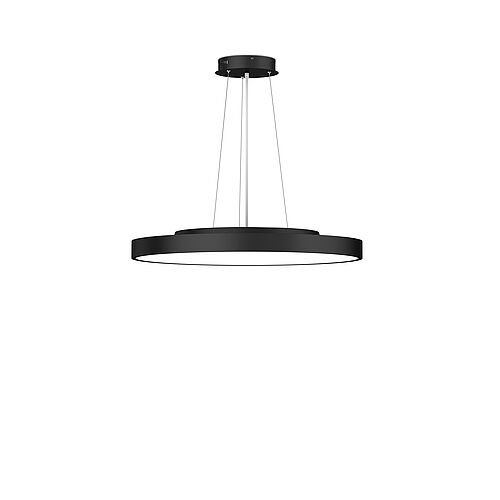

BL CWL Trend surface/pendant luminaire 800mm 7800lm 75W 120D/I 830-840 black available
Top Features
-
BlackColour housing
-
3000 & 4000Colour temperature
-
7800Rated luminous flux according to IEC 62722-2-1
- Color temperature selectable via dip switch 3000 & 4000
- direct/indirect Light emission
- mounting Aufbau
- Housing Aluminium Black
Surface-mounted or pendant LED luminaire, 7,800 lumens, 75W, direct and indirect light distribution, CRI >80, 3,000 - 4,000 Kelvin, IP44, protection class III, non-dimmable, UGR
Ceiling & wall luminaires Trend
Article 731009
Modern surface lights with a wide range of possible uses for representative environments. Whether as a wall or ceiling-mounted version with direct/indirect light component. Mounting type optional rope or pendulum tube suspension . The color temperature 3000 & 4000 can be selected via dip switch.
Housing Aluminium Black , Cover material Plastic opal , Luminous flux 7800 with an efficiency of 105 and a color rendering of >80 , Total power 75 , Beam angle 120 , Service life 50000 , Protection class IP44 , UGR <22 ,

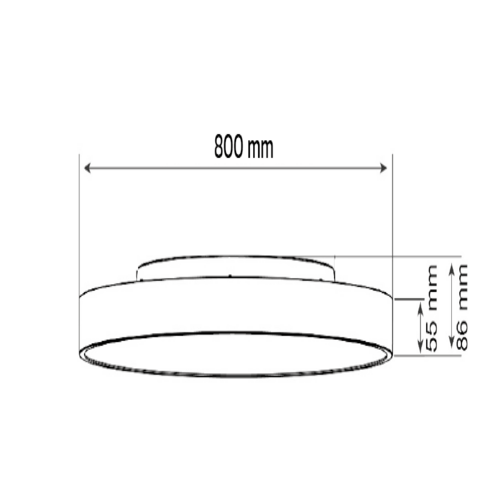

Dimensions: Diameter 800 , Height 86
| Mechanical data | |
|---|---|
| Material housing | Aluminium |
| Colour housing | Black |
| Width | 800 |
| Length | 800 |
| Height | 86 |
| Diameter | 800 |
| Outer diameter | 800 |
| Mounting method | Aufbau |
| Reflector | matt |
| Lamp type | LED nicht austauschbar |
| Type of fastening | optional rope or pendulum tube suspension |
| Direct/indirect components separately adjustable | nein |
| Material of the cover | Plastic opal |
| Degree of protection (IP) | IP44 |
| Surface finishing | matt |
| Suspension included in delivery | optional |
| Unified Glare Ratio (UGR) | <22 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Max. inrush current | 30.9 |
| Nominal voltage | 54 - 240 |
| Type of dimming | not dimmable |
| Overall efficiency | 105 |
| Max. system power | 75 |
| Power factor | 0.9 |
| No dim function | yes |
| Flicker percent (< 165 Hz) | <2 |
| Light technical data | |
|---|---|
| Beam angle | 120 |
| Colour rendering index CRI | >80 |
| Light exit | direct / indirect |
| Light distribution | symmetrical |
| Rated luminous flux according to IEC 62722-2-1 | 7800 |
| Colour temperature | 3000 & 4000 |
| Colour of light | White |
| Energy efficiency class of teh built-in lamp | F |
| Temperature technical data | |
|---|---|
| Ambient temperature during operating | - 20 ... + 40 |
| Rated life time L70/B10 at 25 °C | 50000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Net weight | 1100 g |
| Net width | 800 mm |
| Net height | 86 mm |
| Net length | 800 mm |
