BL DIM Basic DALI BL Shine Lightmanagement / BL Controller / Dimmer Basic

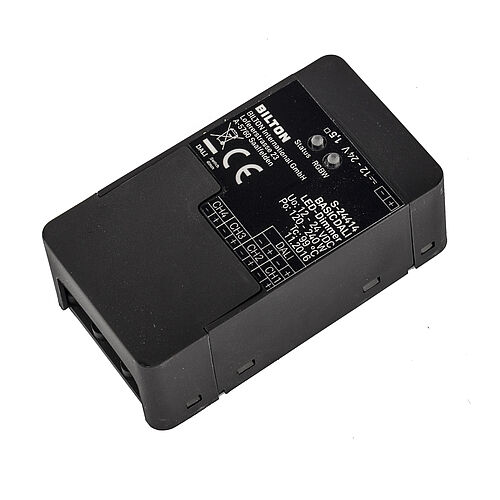

BL Dimmer BASIC 12-24VDC 240W for LED strip IP20 DALI SWITCH available
Top Features
-
12 - 24Imput voltage range
-
240Output power range
-
DALI / SwitchControl signal
-
10000Output current range
1-4 channel LED dimmer for constant voltage 12-24VDC. Maximum total output 240W at 24VDC (max. 10A). Input voltage 12-24VDC. Control signal DALI or Switch Dimm. PWM frequency 600Hz. Protection class IP20. Protection class III. dimensions LxWxH = 95x53x33mm
LED dimmer BILTON LEDON Technology BL DIM Basic DALI DALI/Switch
Article 101639
The BL DIM Basic DALI series is a 1- to 4 channel LED dimmer for modules in constant current operation. The total load of max. 10000 can be freely distributed to these 4 channels. The controller is operated with DALI/Switch and 12 - 24 and has an output voltage of 12-24 DC. The power dissipation in stand-by is 0.5 . The dimming frequency of the PWM signal is 600 . Protection degree IP20 and protection class III .

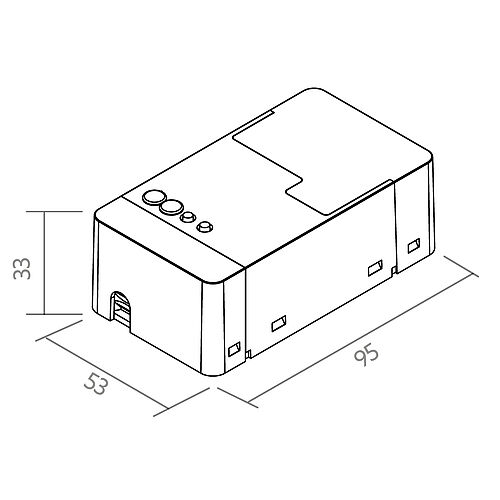

Dimension (L x W x H): 95 x 53 x 33
| Mechanical data | |
|---|---|
| Housing | Kunststoffgehäuse |
| Width | 53 |
| Length | 95 |
| Height | 33 |
| Colour | Black |
| Model | dynamisch |
| Control signal | DALI / Switch |
| With overheating protection | yes |
| Suitable for outdoor use | nein |
| Degree of protection (IP) | IP20 |
| Core cross section | 0,75 - 1,5 |
| Electrical data | |
|---|---|
| Protection class | III |
| Dimming frequency | 600 |
| Voltage type | DC |
| Number of channels | 4 |
| Control signal | DALI / Switch |
| With overheating protection | yes |
| Imput voltage range | 12 - 24 |
| Output voltage range | 12 - 24 |
| Output power range | 240 |
| Output current range | 10000 |
| Type of dimming | DALI |
| Overload protection | yes |
| Standby power consumption (solstandby) | 0.5 |
| Suitable for constant current | nein |
| Suitable for constant voltage | yes |
| Suitable for DC-voltage (primary side) | yes |
| Dimming DALI | yes |
| Dimming Touch and Dim | yes |
| Connection | |
|---|---|
| Number of channels | 4 |
| Core cross section | 0,75 - 1,5 |
| Temperature technical data | |
|---|---|
| Ambient/storage temperature | - 20 ... + 50 |
| Operation temperature at Tc | 0 ... + 50 |
| Ambient temperature during operating | - 5 ... + 45 |
| Lifespan at 20 °C | 45000 |
| Packaging information | |
|---|---|
| State of origin | SI |
| Customs tariff number | 85423190 |
| Net weight | 93 g |
| Gross weight | 142 g |
| Gross width | 58 mm |
| Gross height | 50 mm |
| Gross length | 252 mm |
| Net width | 53 mm |
| Net height | 33 mm |
| Net length | 95 mm |
