BL Downlight Protected LED-Leuchten EOL / BL Downlights

back
Article no.: 723003

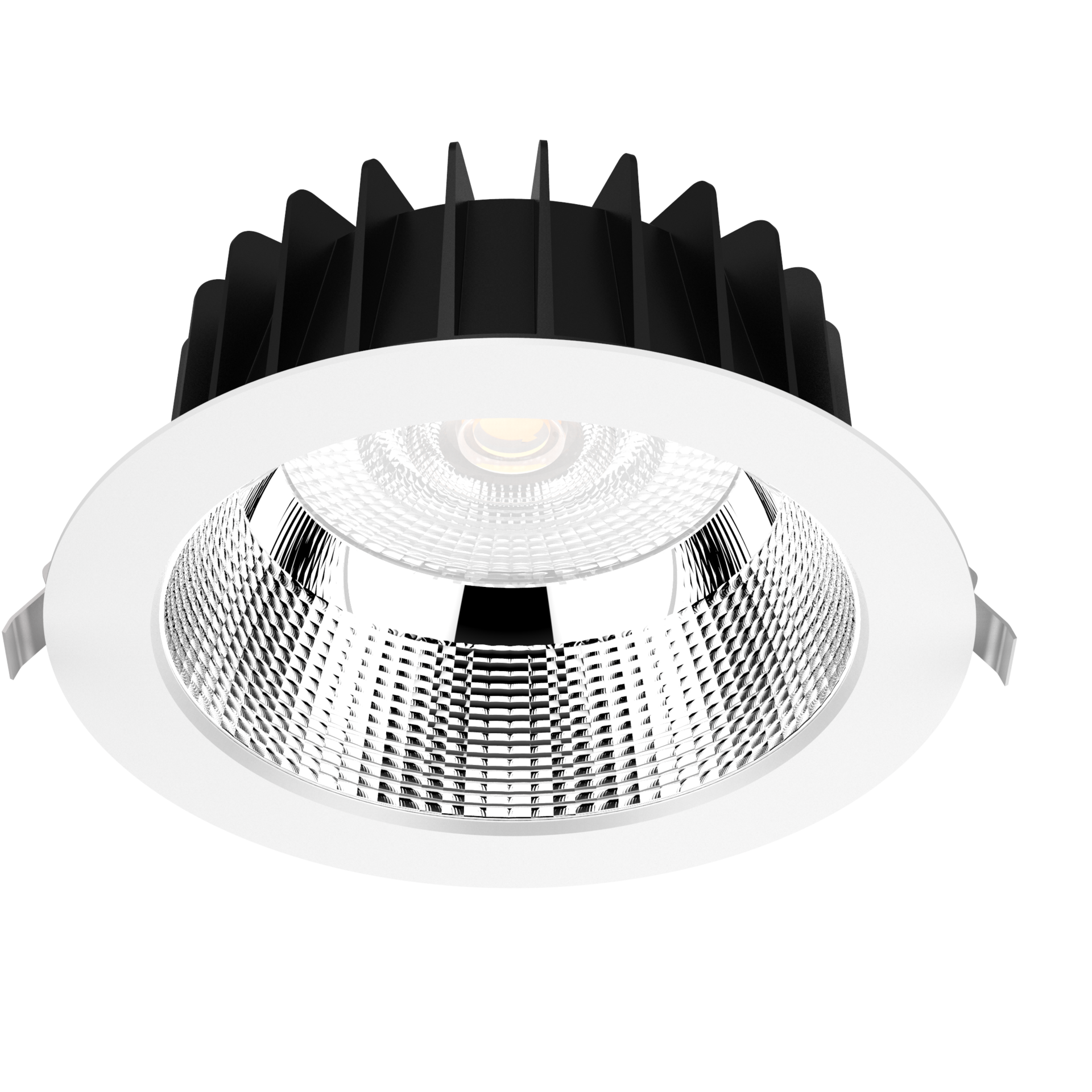

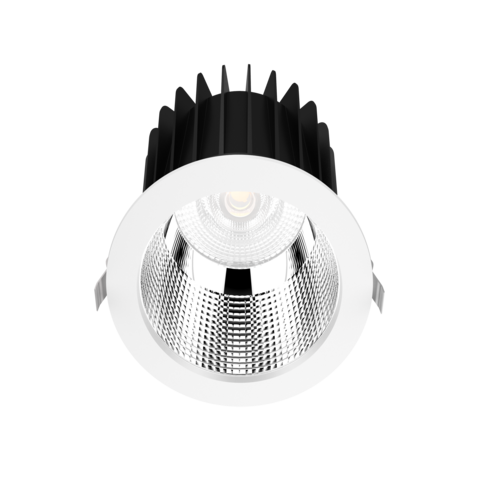

BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54
BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54
BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54
BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54

BL Downlight Protected recessed luminaire 145mm 2000lm 17W 60D 840 white IP54 available

Datasheet

Top Features

  • Aluminium
    Material housing
  • IK06
    Impact strength
  • IP54
    Degree of protection (IP)
  • <19
    Unified Glare Ratio (UGR)
  • Excellent glare value of UGR
  • Aluminum reflector with mirror optics§
  • Protection class (room side) IP54
  • Plug&Play Connection

LED recessed downlight round, 2000 lumen, 17W, 60° direct beam, CRI >80, 4,000 Kelvin, IP54, IK06, protection class III, non-dimmable, UGR

BL Downlight Protected

Article 723003

BL Downlight Protected

LED downlight with easy installation and commissioning of the LED converter thanks to pre-installed connection cable; highly efficient reflector made of Aluminium ; high-quality, White aluminum cooling housing; excellent thermal management; suitable for ambient temperatures of-20 ... +45 ; protection class IP54 room-side; impact resistance IK06 ; protection class III ; service life (50000 ; ); Luminaire luminous flux 2000 ; Connected load 17 W; Luminaire luminous efficacy 100 ; Colour rendering >80 ; Light color White ; Colour temperature 4000 ; Beam angle 60 ; Flicker-free (<5 ); Glare-free light distribution thanks to special reflector; UGR <19 ; Dimensions (L/W/H): 145 x 145 x 78 , Weight 475 g

  • >80
  • IP54
  • 4000
Share: Facebook Google+ WhatsApp
Mechanical data
Material housing Aluminium
Colour housing White
Width 145
Length 145
Height/depth 78
Outer diameter 145
Mounting method Einbau
Reflector Silber
Lamp type LED nicht austauschbar
Type of fastening Haltfedern
Impact strength IK06
Degree of protection (IP) IP54
With lamp yes
Surface finishing matt
Control gear included yes
Suitable for ceiling mounting yes
Unified Glare Ratio (UGR) <19
Electrical data
Protection class III
Voltage type AC
Power factor 0,95
Nominal voltage 220 - 240
Operating frequency 50 / 60
Overall efficiency 100
Max. system power 17
No dim function yes
Flicker percent (< 165 Hz) <5
Light technical data
Beam angle 60
Colour rendering index CRI >80
Light distribution symmetrical
Rated luminous flux according to IEC 62722-2-1 2000
Colour temperature 4000
Colour of light White
Energy efficiency class of teh built-in lamp F
Flicker-free yes
Temperature technical data
Impact strength IK06
Ambient temperature during operating - 20 ... + 45
Rated life time L70/B10 at 25 °C 50000
Packaging information
State of origin CN
Net weight 475 g
Gross weight 575 g
Net width 145 mm
Net height 78 mm
Net length 145 mm
