Article no.: 172025
BL DRIVE 60W 24V IP20 Power Supply
BL DRIVE 60W 24V IP20 Power Supply
BL DRIVE 60W 24V IP20 Power Supply
BL DRIVE 60W 24V IP20 Power Supply

BL DRIVE 60W 24V IP20 Power Supply available

Datasheet

Top Features

  • 24
    Output voltage range
  • 3 - 60
    Output power range
  • IP20
    Degree of protection (IP)

Power supply, Constant voltage, Max. output power 60W, maximum input voltage 220-240VAC, output voltage 24V, SELV, protection class IP20. Protection class II, dimensions L x W x H = 151.5 x 40.2 x 31 mm

BILTON LEDON Technology power supply Drive Fixoutput

Article 172025

The power supply can be used up to 3 - 60 output power and 24 output voltage. The supply voltage of the power supply is 198 - 264 and has a IP20 protection class and protection class II .

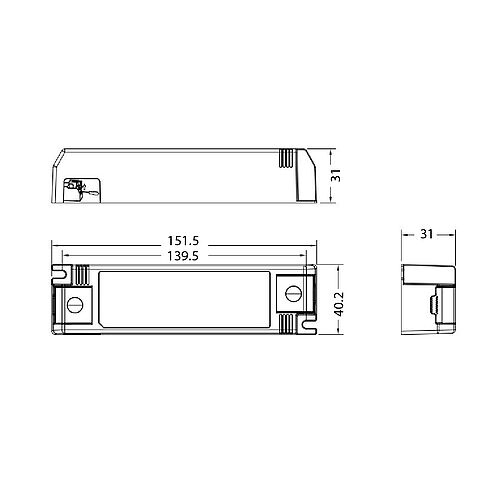

Dimension (L x W x H): 151.5 x 40.2 x 31

  • IP20
  • picto-Trash
  • picto-Ce
Share: Facebook Google+ WhatsApp
Mechanical data
Housing Kunststoffgehäuse
Width 40.2
Length 151.5
Height 31
Colour White
Control signal ohne
With overheating protection yes
Suitable for outdoor use nein
Degree of protection (IP) IP20
Electrical data
Protection class II
Control signal ohne
With overheating protection yes
Imput voltage range 198 - 264
Output voltage range 24
Output power range 3 - 60
Frequency supply voltage (range) 50 - 60
Output current range 125 - 2500
Overload protection yes
Standby power consumption (solstandby) 0.5
Suitable for constant voltage yes
Suitable for DC-voltage (primary side) yes
Power factor 0.95
No dim function yes
Temperature technical data
Ambient/storage temperature - 40 ... + 85
Operation temperature at Tc - 20 ... + 50
Lifespan at 20 °C 50000
Packaging information
State of origin CN
Customs tariff number 85044083
Net weight 201 g
Gross weight 201 g
Net width 151.5 mm
Net height 31 mm
Net length 40.2 mm
