Drive IP Outdoor BL Shine power supplies / BL power supply Basic

back
Article no.: 172035
BL DRIVE IP 240W 24V IP67 Power Supply Outdoor
BL DRIVE IP 240W 24V IP67 Power Supply Outdoor
BL DRIVE IP 240W 24V IP67 Power Supply Outdoor
BL DRIVE IP 240W 24V IP67 Power Supply Outdoor

BL DRIVE IP 240W 24V IP67 Power Supply Outdoor available

Datasheet

Top Features

  • 24
    Output voltage range
  • 0 - 240
    Output power range
  • IP67
    Degree of protection (IP)

Power supply for outdoor use, max. output power 240W, maximum input voltage 220-240VAC, output voltage 24V, SELV, protection class IP67. Protection class I, dimensions L x W x H = 400 x 30 x 21 mm

BILTON LEDON Technology power supply Drive IP Outdoor

Article 172035

The power supply can be used up to 0 - 240 output power and 24 output voltage. The supply voltage of the power supply is 176 - 264 and has a IP67 protection class and protection class I .

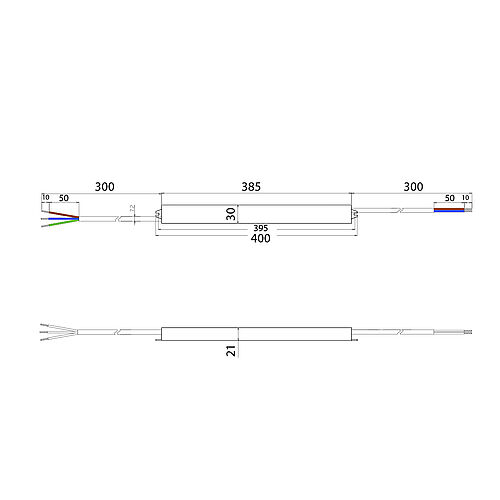

Dimension (L x W x H): 400 x 30 x 21

  • IP67
  • picto-Trash
  • picto-Ce
Share: Facebook Google+ WhatsApp
Mechanical data
Housing Aluminiumgehäuse
Width 30
Length 400
Height 21
Colour White
Control signal ohne
With overheating protection yes
Suitable for outdoor use yes
Degree of protection (IP) IP67
Electrical data
Protection class I
Control signal ohne
With overheating protection yes
Imput voltage range 176 - 264
Output voltage range 24
Output power range 0 - 240
Frequency supply voltage (range) 50 - 60
Output current range 10000
Overload protection yes
Standby power consumption (solstandby) 0.5
Suitable for constant voltage yes
Suitable for DC-voltage (primary side) yes
Power factor 0.95
No dim function yes
Temperature technical data
Ambient/storage temperature - 40 ... + 85
Operation temperature at Tc - 25 ... + 50
Lifespan at 20 °C 50000
Packaging information
State of origin CN
Customs tariff number 85044083
Net weight 530 g
Gross weight 530 g
Net width 400 mm
Net height 21 mm
Net length 30 mm
