Article no.: 742059

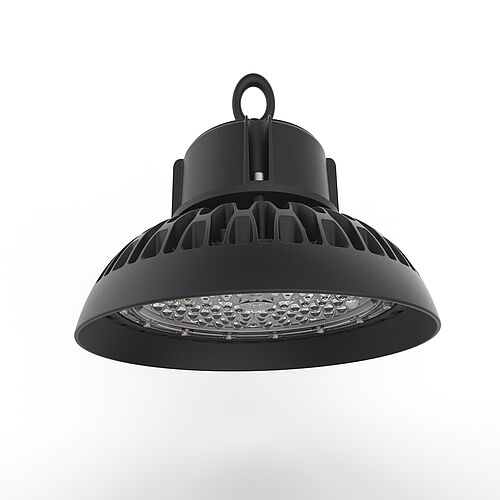

BL HB Pure 250 100W/90D/740 230V BK
BL HB Pure 250 100W/90D/740 230V BK
BL HB Pure 250 100W/90D/740 230V BK
BL HB Pure 250 100W/90D/740 230V BK

BL HB Pure 250 100W/90D/740 230V BK available

Datasheet

Top Features

  • Seilabhängung / Montagebügel
    Type of fastening
  • IK08
    Impact strength
  • IP65
    Degree of protection (IP)

BL High Bays Pure

Article 742059

LED High Bay with integrated LED power supply - yes ; Mounting type Surface / Suspension using Seilabhängung / Montagebügel , highly efficient lens optics made of Polycarbonate (PC) , cooling housing made of Aluminium Black , excellent thermal management, suitable for ambient temperatures of -30 ... +40 , protection class IP65 , shock resistance IK08 , service life of 80000 , luminous flux 15000 , connected load 100 , color rendering >70 , color temperature 4000 , Beam angle 90 , Shock resistance IK08 , Dimensions (L/W/H): 250 x 250 x 178

  • >70
  • IP65
  • 4000
Share: Facebook Google+ WhatsApp
Mechanical data
Material housing Aluminium
Colour housing Black
Width 250
Length 250
Height/depth 178
Height 178
Diameter 250
Mounting method Surface / Suspension
Lamp type LED nicht austauschbar
Type of fastening Seilabhängung / Montagebügel
Material of the cover Polycarbonate (PC)
Impact strength IK08
Degree of protection (IP) IP65
With lamp yes
Control gear included yes
Suspension included in delivery nein
Electrical data
Protection class III
Voltage type AC
Nominal voltage 100 - 277
Operating frequency 50 / 60
Overall efficiency 150
Max. system power 100
Power factor 0.95
No dim function yes
Light technical data
Beam angle 90
Colour rendering index CRI >70
Light exit direkt
Light distribution symmetrical
Rated luminous flux according to IEC 62722-2-1 15000
Colour temperature 4000
Colour of light White
Colour consistency (McAdam ellipse) SDCM6
Flicker-free yes
Temperature technical data
Impact strength IK08
Ambient temperature during operating - 30 ... + 40
Rated life time L80/B10 at 25 °C 80000
Packaging information
State of origin CN
Net weight 2400 g
Gross weight 2920 g
Gross width 300 mm
Gross height 170 mm
Gross length 300 mm
Net width 250 mm
Net height 178 mm
Net length 250 mm
