BL High Bays Pure LED-Leuchten EOL / BL HighBay
Article no.: 742077
This product is only available for a limited time.

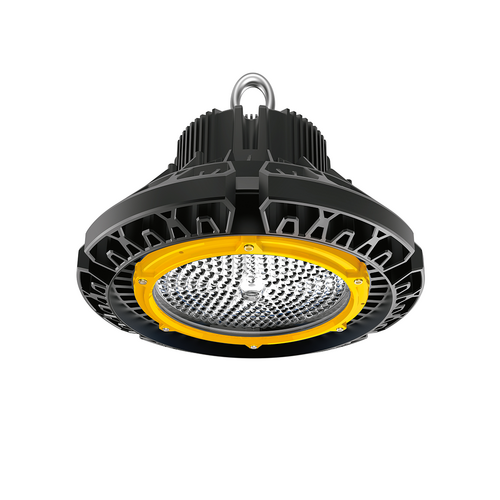

BL HB Pure 350 200W/110D/740 230V DALI BK available
Top Features
-
Seilabhängung / MontagebügelType of fastening
-
IK08Impact strength
-
IP65Degree of protection (IP)
BL High Bays Pure
Article 742077

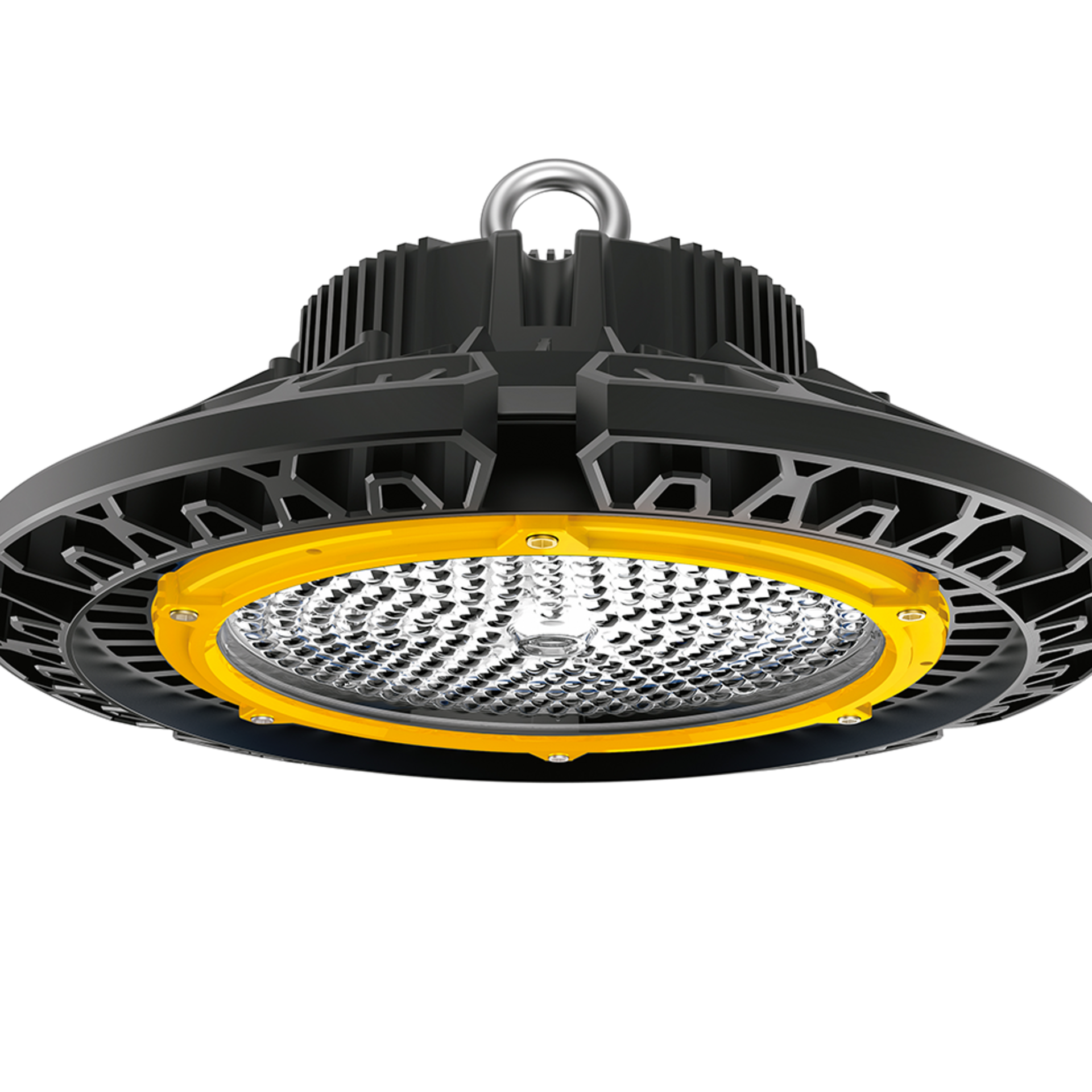

LED High Bay with integrated LED power supply - yes ; Mounting type Surface / Suspension using Seilabhängung / Montagebügel , highly efficient lens optics made of Polycarbonate (PC) , cooling housing made of Aluminium Black , excellent thermal management, suitable for ambient temperatures of -30 ... +40 , protection class IP65 , shock resistance IK08 , service life of 80000 , luminous flux 30000 , connected load 200 , color rendering >70 , color temperature 4000 , Beam angle 110 , Shock resistance IK08 , Dimensions (L/W/H): 350 x 350 x 184
| Mechanical data | |
|---|---|
| Material housing | Aluminium |
| Colour housing | Black |
| Width | 350 |
| Length | 350 |
| Height/depth | 184 |
| Diameter | 350 |
| Mounting method | Surface / Suspension |
| Lamp type | LED nicht austauschbar |
| Type of fastening | Seilabhängung / Montagebügel |
| Material of the cover | Polycarbonate (PC) |
| Impact strength | IK08 |
| Degree of protection (IP) | IP65 |
| With lamp | yes |
| Control gear included | yes |
| Suspension included in delivery | nein |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | AC |
| Nominal voltage | 100 - 277 |
| Operating frequency | 50 / 60 |
| Overall efficiency | 150 |
| Max. system power | 200 |
| Power factor | 0.95 |
| Dimming DALI | yes |
| Light technical data | |
|---|---|
| Beam angle | 110 |
| Colour rendering index CRI | >70 |
| Light exit | direkt |
| Light distribution | symmetrical |
| Rated luminous flux according to IEC 62722-2-1 | 30000 |
| Colour temperature | 4000 |
| Colour of light | White |
| Colour consistency (McAdam ellipse) | SDCM6 |
| Flicker-free | yes |
| Temperature technical data | |
|---|---|
| Impact strength | IK08 |
| Ambient temperature during operating | - 30 ... + 40 |
| Rated life time L80/B10 at 25 °C | 80000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Net weight | 3800 g |
| Gross weight | 4525 g |
| Gross width | 390 mm |
| Gross height | 200 mm |
| Gross length | 390 mm |
| Net width | 350 mm |
| Net height | 184 mm |
| Net length | 350 mm |
