BL NEON Side BL Shine LED-Strip / BL COR Pure / IP-Protected / BL NEON
BL NEON Side LED light tube 450lm/m 24VDC 10.6W/m IP67 930 5m available
Top Features
-
24Lamp voltage
-
5000Max. length
-
>90Colour rendering index CRI
-
450Luminous flux per meter
- Salt solution resistance, acid and alkali corrosion resistance, flame retardant resistance, UV resistance
- No dark spots
- Protection class IP67
- Product application: Sign lighting, decorative outdoor/indoor lighting, architectural contour application
LED light tube Neon Side 450lm/m, silicone, 24 VDC, 10.6W/m, 42 lm/W, IP67 (without dark areas), CRI >90, 3000 K, one-sided cable 50 cm, cabel exit right, 5 meters
LED module BL NEON Side
Article 171862

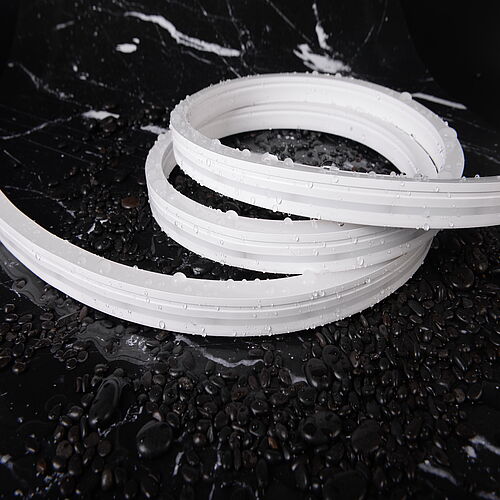

The BL NEON Side is a linear LED light strip in a highly flexible silicone sheath. The LED module can be bent in a curve shape in the direction of the light exit surface. It is resistant to salt solution, acid and alkali corrosion. It is flame-retardant and UV-resistant. Suitable for ambient temperatures of -20 ... +40 with a service life of 60000 .
The BL NEON Side LED light strip has a luminous flux of 450 at an output of 10.6 , which results in an efficiency of 42 . With a nominal voltage of 24 DC at the connection, a maximum module length of 5000 can be achieved. In terms of lighting, the module has a color temperature of 3000 and a beam angle of 114 . All with a color rendering index of >90 . The light strip can be divided every 50 , which results in an LED spacing of . Protection class IP67 , Smallest possible bending radius 60
Dimensions (L x W x H): 5000 x 12 x 17
| Mechanical data | |
|---|---|
| Width | 12 |
| Length | 5000 |
| Height | 17 |
| Colour | White |
| Model | Schlauch |
| UV-resistant | yes |
| Self-adhesive | nein |
| Lamp type | LED nicht austauschbar |
| Impact strength | IK08 |
| Degree of protection (IP) | IP67 |
| Length of particular segments | 50 |
| Lowest bending radius | 60 |
| Number of lamps per meter | 140 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Lamp voltage | 24 |
| Imput voltage range | 23 - 25 |
| Lamp power per meter | 10.6 |
| Overall efficiency | 42 |
| Light technical data | |
|---|---|
| Beam angle | 114 |
| Colour rendering index CRI | >90 |
| Colour temperature | 3000 |
| Colour of light | White |
| Luminous flux per meter | 450 |
| Connection | |
|---|---|
| Number of poles | 2 |
| Max. length | 5000 |
| Temperature technical data | |
|---|---|
| Ambient/storage temperature | 0 ... + 60 |
| Impact strength | IK08 |
| Ambient temperature during operating | - 20 ... + 40 |
| Rated life time L70/B50 at 25 °C | 60000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 9405423190 |
| Net weight | 1170 g |
| Gross weight | 1170 g |
| Gross width | 410 mm |
| Gross height | 15 mm |
| Gross length | 370 mm |
| Net width | 12 mm |
| Net height | 17 mm |
| Net length | 5000 mm |
* Information about the electrical and lighting technology measurements: Performance data measured after 1 min. at 25 °C ambient temperature and a light colour of 4,000 K (or RGB). These values can have a tolerance value of -/+ 10% (or -/+ 15 %at ECO / TWO / RGB / AIR ). Module length at 24 V input voltage at the module and luminous flux drop 10% over the specified length.
