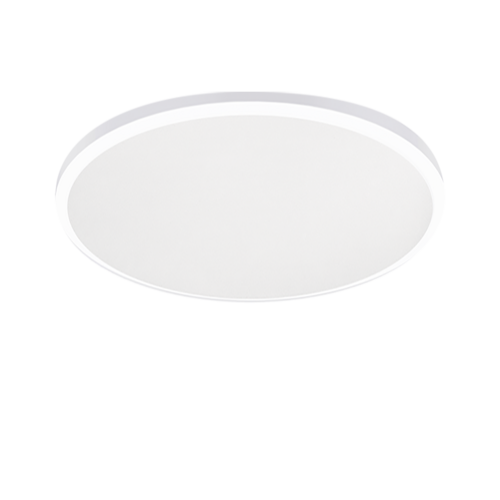

BL Panel Round D600mm LED-Leuchten EOL / BL Panels EOL / BL Panel Round
BL Panel Round 600mm 3500lm 110D 840 white 1050mA available
Top Features
-
IP20Degree of protection (IP)
-
4000Colour temperature
-
3500Rated luminous flux according to IEC 62722-2-1
-
<22Unified Glare Ratio (UGR)
- Frame material: Aluminium

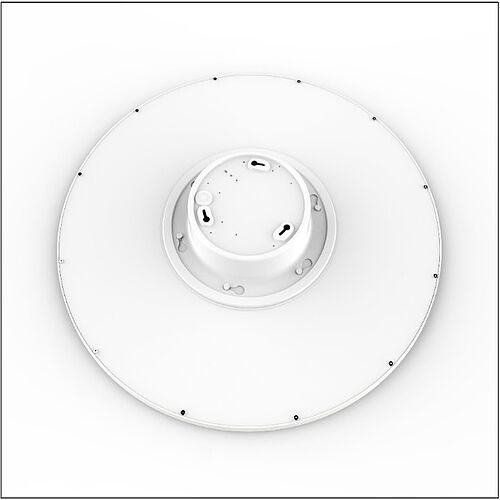

- The lamp body is attached using bayonet locking technology
- Various types of mounting Surface / Installation / Suspension possible
- Flicker-free
LED panel round, 3,500 lumen, 110° direct beam, CRI >80, 4,000 Kelvin, IP20, protection class III, non-dimmable, white aluminium housing, without power supply unit, dimensions: D 600mm x 12mm
BL Panel Round D600mm
Article 714002
Round, flat LED light with possible mounting types Surface / Installation / Suspension . Light body made of Aluminium , White , powder-coated, very flat and compact design with a diameter of and a light body height of 12 . Ceiling installation or surface mounting with ceiling trough 188 and height of 43 . Light body attached using bayonet lock technology. Total light height 55 mm. Harmonious lighting effect due to homogeneously illuminated light output with microprismatic layer. Glare value UGR <22 ,
LED service life 50000 , Luminous flux 3500 , Color rendering >80 , Light color White , Color temperature 4000 , Beam angle 110 , Ambient temperature -20 ... +40 , Protection class IP20 Mounting set must be ordered separately.
| Mechanical data | |
|---|---|
| Material housing | Aluminium |
| Colour housing | White |
| Width | 600 |
| Length | 600 |
| Height/depth | 12 |
| Diameter | 600 |
| Installation diameter | 188 |
| Outer diameter | 600 |
| Mounting method | Surface / Installation / Suspension |
| With movement sensor | nein |
| With light sensor | nein |
| Lamp type | LED nicht austauschbar |
| Material of the cover | Plastic opal |
| Degree of protection (IP) | IP20 |
| With lamp | yes |
| Control gear included | nein |
| Installation height/depth | 43 |
| Unified Glare Ratio (UGR) | <22 |
| Electrical data | |
|---|---|
| Protection class | III |
| Voltage type | DC |
| Nominal voltage | 35 - 38 |
| Overall efficiency | 88 |
| Max. system power | 38 |
| Dimming depending on control gear | yes |
| Light technical data | |
|---|---|
| Beam angle | 110 |
| Colour rendering index CRI | >80 |
| Light exit | direkt |
| Light distribution | symmetrical |
| Rated luminous flux according to IEC 62722-2-1 | 3500 |
| Colour temperature | 4000 |
| Colour of light | White |
| Energy efficiency class of teh built-in lamp | F |
| Colour consistency (McAdam ellipse) | SDCM4 |
| Temperature technical data | |
|---|---|
| Ambient temperature during operating | - 20 ... + 40 |
| Rated life time L70/B10 at 25 °C | 50000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Net weight | 4740 g |
| Gross weight | 5700 g |
| Net width | 600 mm |
| Net height | 12 mm |
| Net length | 600 mm |
