Article no.: 170505

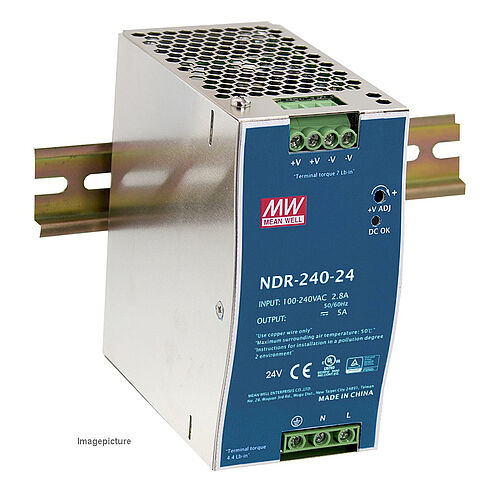

BL REG Power supply unit CV 90-264VAC 240W 24VDC 10000mA IP20 Vout adjustable
BL REG Power supply unit CV 90-264VAC 240W 24VDC 10000mA IP20 Vout adjustable

BL REG Power supply unit CV 90-264VAC 240W 24VDC 10000mA IP20 Vout adjustable available

Datasheet

Top Features

  • 24
    Output voltage range
  • 240
    Output power range
  • IP20
    Degree of protection (IP)

REG power supply unit constant voltage. Input voltage 90-264VAC. Maximum total power 240W (max. 10A). Output voltage 24VDC. Protection class IP20. Protection class I. Dimensions LxWxH = 113.5x63x125.2mm

BILTON LEDON Technology power supply Drive REG series installation

Article 170505

The power supply can be used up to 240 output power and 24 output voltage. The supply voltage of the power supply is 85 - 264 and has a IP20 protection class and protection class I .

Dimension (L x W x H): 113.5 x 63 x 125.2

  • IP20
  • picto-Trash
  • picto-Rohs
  • picto-Ce
Share: Facebook Google+ WhatsApp
Mechanical data
Housing Metallgehäuse
Width 63
Length 113.5
Height 125.2
Model Static
Control signal ohne
With overheating protection yes
Suitable for outdoor use nein
Degree of protection (IP) IP20
Electrical data
Protection class I
Voltage type AC
Control signal ohne
With overheating protection yes
Imput voltage range 85 - 264
Output voltage range 24
Output power range 240
Output current range 10000
Type of dimming not dimmable
Overload protection yes
Suitable for constant current nein
Suitable for constant voltage yes
Suitable for DC-voltage (primary side) nein
Temperature technical data
Ambient/storage temperature - 40 ... + 85
Lifespan at 20 °C 30000
Packaging information
State of origin CN
Customs tariff number 85043180
Net weight 916.6 g
Gross weight 982 g
Gross width 100 mm
Gross height 155 mm
Gross length 155 mm
Net width 63 mm
Net height 125.5 mm
Net length 113.5 mm
