Article no.: 172045
BLDRIVE DIM 35W 24V IP20 Power Supply Casambi
BLDRIVE DIM 35W 24V IP20 Power Supply Casambi
BLDRIVE DIM 35W 24V IP20 Power Supply Casambi
BLDRIVE DIM 35W 24V IP20 Power Supply Casambi

BLDRIVE DIM 35W 24V IP20 Power Supply Casambi available

Datasheet

Top Features

  • 35
    Output power range
  • IP20
    Degree of protection (IP)

Dimmable Casambi power supply, max. output power 35W, maximum input voltage 220-240VAC, output voltage 24V, SELV, protection class IP20. Protection class I, Casambi, dimensions L x W x H = 195 x 43 x 30.2 mm

BILTON LEDON Technology power supply Drive Dim Casambi

Article 172045

The power supply can be used up to 35 output power and output voltage. The supply voltage of the power supply is 198 - 264 and has a IP20 protection class and protection class II .

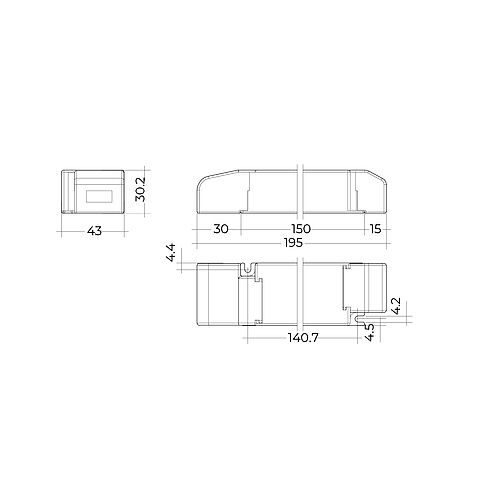

Dimension (L x W x H): 195 x 43 x 30.2

  • IP20
  • Funk
  • picto-Trash
  • picto-Ce
Share: Facebook Google+ WhatsApp
Mechanical data
Housing Kunststoffgehäuse
Width 43
Length 195
Height 30.2
Colour White
Control signal Funk
With overheating protection yes
Suitable for outdoor use nein
Degree of protection (IP) IP20
Core cross section 0,2 - 1,5
Electrical data
Protection class II
Voltage type AC / DC
Control signal Funk
With overheating protection yes
Imput voltage range 198 - 264
Output power range 35
Frequency supply voltage (range) 50 - 60
Overload protection yes
Standby power consumption (solstandby) 0.37
Suitable for constant voltage yes
Suitable for DC-voltage (primary side) yes
Connection
Core cross section 0,2 - 1,5
Temperature technical data
Ambient/storage temperature - 40 ... + 80
Lifespan at 20 °C 50000
Packaging information
State of origin CN
Customs tariff number 85044083
Net weight 150 g
Gross weight 150 g
Net width 195 mm
Net height 30.2 mm
Net length 43 mm
