Mounting clip BLine M-S-02 BL Shine profiles / BLine S / Mounting accessories BLine M-S

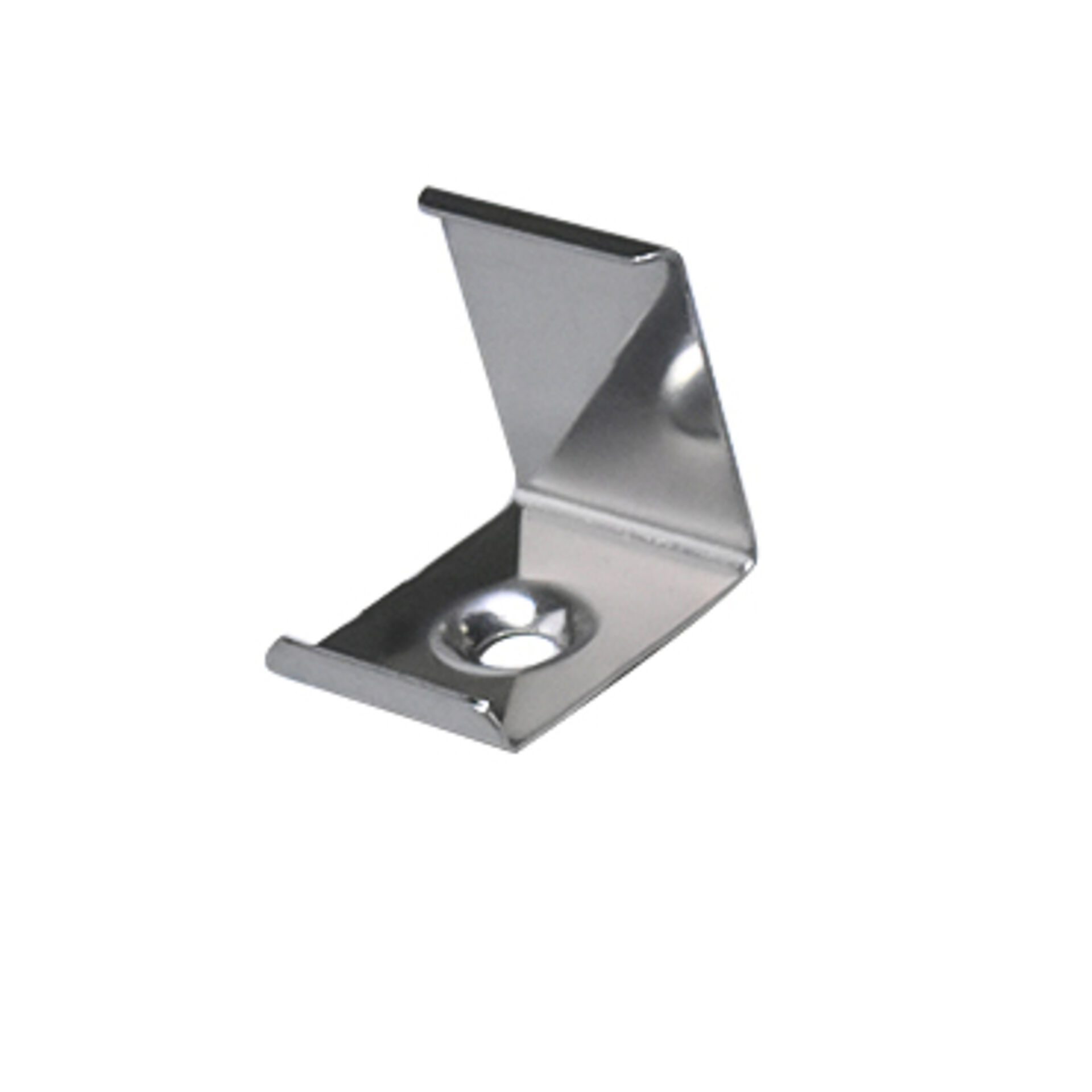

BLine M-S-02 mounting clip Spring steel for profile P-S-COR01 with drill available
Mounting clip spring steel with cable hole 3.5mm for profile P-S-COR01 Height to profile 1.6mm, Width to profile 2.3mm
BILTON LEDON Technology Mounting clip BLine M-S-02
Article 171778
The Mounting clip BLine M-S-02 consists of Edelstahl with a Edelstahl surface. The Mounting clip BLine M-S-02 is provided with a cable hole -
Dimensions (L x W x H): 19.4 x x 14
| Mechanical data | |
|---|---|
| Material | Edelstahl |
| Width | 14 |
| Length | 19.4 |
| Height | 20.3 |
| Mounting method | Aufbau |
| Colour | Edelstahl |
| Type of accessory | Mounting clip |
| Transparent | nein |
| Accessory | yes |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 73269098 |
| Net weight | 1.72 g |
| Gross weight | 90 g |
| Gross width | 90 mm |
| Gross height | 10 mm |
| Gross length | 130 mm |
| Net width | 14 mm |
| Net height | 20.3 mm |
| Net length | 19.4 mm |
* Our aluminum profiles, plastic profiles, and associated accessories are intended exclusively for use in LED lighting, especially LED strips. They serve as integral components of luminaires and are designed for this purpose. Any other use, especially any misuse outside of LED lighting, is beyond our responsibility. We assume no liability for damages or consequential costs resulting from improper use of our products.
