Transparent cover BLine Select SX10 BL Shine profiles / BLine Select / BLine Select XT / Covers BLine Select XT
Article no.: 170403
BLine Select SX10 cover transparent flat 2000 mm for XT01_02_03 available
Top Features
-
23Covering width
-
85Bore/transmittance
-
7.4mmNet height
Cover XT, transparent flat, 120x120, 85%, PMMA, L 2000 x W 23 x H 7.4 mm
BILTON LEDON Technology Transparent cover BLine Select SX10
Article 170403

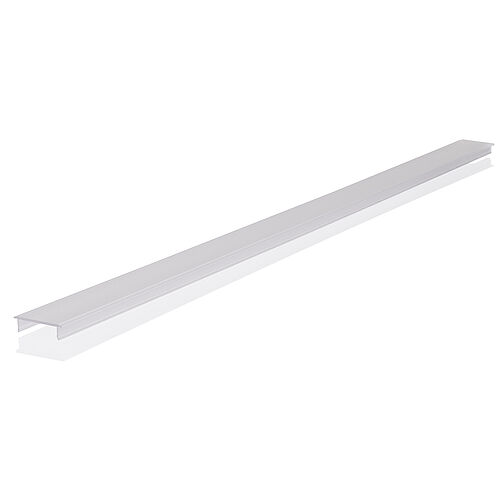

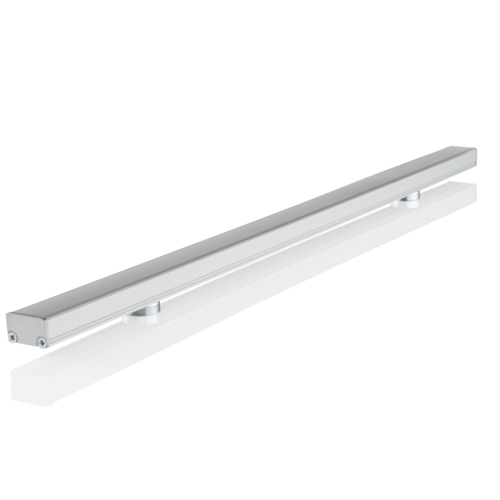

The Transparent cover BLine Select SX10 cover can be combined with all profiles from the XT family
The cover consists of Kunststoff and has a transparent finish with a transmittance degree of 85 . Easy installation via into the profile.

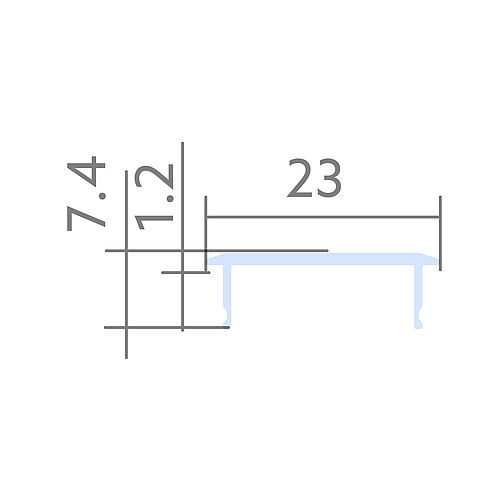

Dimension (L x W x H): 2000 x 23 x
Please note that cutting tolerances of +/- 2mm may occur.
| Mechanical data | |
|---|---|
| Material | Kunststoff |
| Width | 23 |
| Length | 2000 |
| Covering width | 23 |
| Colour | ohne |
| Model | Lengthwise cover |
| Suitable for | U - Profil |
| Inflammability class of insulation material acc. with UL94 | HB |
| Surfacetreatment | transparent |
| Temperature technical data | |
|---|---|
| Ambient/storage temperature | + 10 ... + 50 |
| Thermal conductivity | 70 |
| Bore/transmittance | 85 |
| Packaging information | |
|---|---|
| State of origin | IT |
| Customs tariff number | 94054231 |
| Net weight | 88.8 g |
| Gross weight | 88.8 g |
| Gross width | 23 mm |
| Gross height | 7.4 mm |
| Gross length | 2000 mm |
| Net width | 23 mm |
| Net height | 7.4 mm |
| Net length | 2000 mm |
