Article no.: 170370
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03
BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03

BLine Select SX30 linear lens symmetrical 2000 mm for XT01_02_03 available

Datasheet

Top Features

  • 23.5
    Covering width
  • 72
    Bore/transmittance
  • 9.1
    mm
    Net height

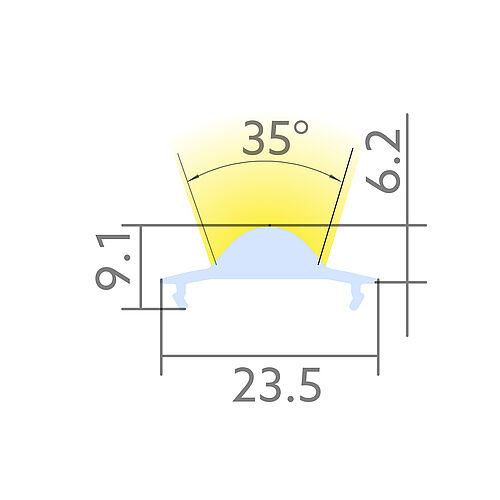

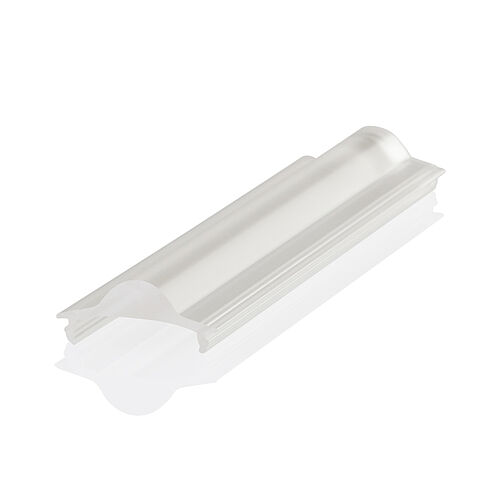

Cover linear lens XT, symmetrical, 35x35, 72%, PMMA, L 2000 x W 23 x H 9.1 mm

BILTON LEDON Technology Lense symmetrical BLine Select SX30

Article 170370

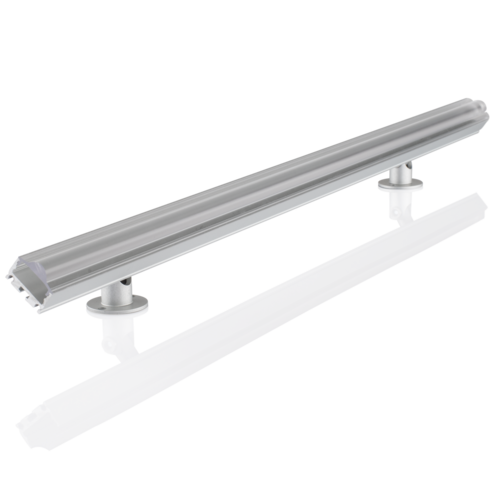

The Lense symmetrical BLine Select SX30 cover can be combined with all profiles from the XT family

The cover consists of Kunststoff and has a transparent finish with a transmittance degree of 72 . Easy installation via into the profile.

Dimension (L x W x H): 2000 x 23.9 x

Please note that cutting tolerances of +/- 2mm may occur.

Share: Facebook Google+ WhatsApp
Mechanical data
Material Kunststoff
Width 23.9
Length 2000
Covering width 23.5
Colour ohne
Model Lengthwise cover
Suitable for U - Profil
Inflammability class of insulation material acc. with UL94 HB
Surfacetreatment transparent
Temperature technical data
Ambient/storage temperature + 10 ... + 50
Thermal conductivity 70
Bore/transmittance 72
Packaging information
State of origin DE
Customs tariff number 94054231
Net weight 84 g
Gross weight 84 g
Gross width 23.5 mm
Gross height 9.1 mm
Gross length 2000 mm
Net width 23.5 mm
Net height 9.1 mm
Net length 2000 mm
