BL Downlight Office BL Shine LED luminaires / BL Downlights

back
Article no.: 728055
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA
BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA

BL Downlight Office recessed luminaire D170mm 1800lm 18W 60D 940 white 450mA available

Datasheet

Top Features

  • Einbau
    Mounting method
  • IP44
    Degree of protection (IP)
  • 170
    Diameter
  • This high-quality downlight offers a glare limitation of <19
  • Protection class (room side) IP44
  • COB light source
  • Plug&Play connection

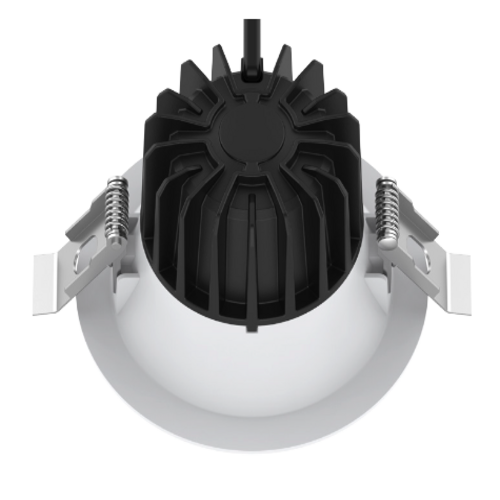

LED recessed downlight round, white aluminium housing, without power supply unit, 1,800 lumen, 18W, 60° direct beam, CRI >90, 4,000 Kelvin, IP44, dimensions: D 170 x H 112 mm

BL Downlight Office

Article 728055

LED ceiling recessed downlight - control gear - nein , made of high-quality, White coated Aluminium frame; best light quality and homogeneous symmetrical light distribution across the entire light emission surface, protection class IP44 , luminous flux 1800 , connected load 18 , luminous efficacy 100 , color rendering >90 , light color White , color temperature 4000 , beam angle 60 , dimensions: 170 x 112 , ceiling cutout 139

  • >90
  • IP44
  • 4000
  • picto-Trash
  • picto-Ce
Share: Facebook Google+ WhatsApp
Mechanical data
Material housing Aluminium
Colour housing White
Width 170
Length 170
Height/depth 112
Diameter 170
Installation diameter 139
Outer diameter 170
Mounting method Einbau
Lamp type LED nicht austauschbar
Degree of protection (IP) IP44
Control gear included nein
Installation height/depth 112
Unified Glare Ratio (UGR) <19
Electrical data
Protection class III
Voltage type DC
Nominal voltage 33 - 38
Overall efficiency 100
Max. system power 18
Light technical data
Beam angle 60
Colour rendering index CRI >90
Light distribution symmetrical
Rated luminous flux according to IEC 62722-2-1 1800
Colour temperature 4000
Colour of light White
Temperature technical data
Ambient temperature during operating - 20 ... + 45
Rated life time L80/B10 at 25 °C 50000
Packaging information
State of origin CN
Customs tariff number 94051190
Net weight 500 g
Gross weight 640 g
Gross width 190 mm
Gross height 140 mm
Gross length 190 mm
Net width 170 mm
Net height 112 mm
Net length 170 mm
