BL Downlight UGR Flat BL Shine LED luminaires / BL Downlights
Article no.: 723020
BL Downlight UGR Flat recessed luminaire 380mm 1700lm 15W 90D 840 white 450 mA available
Top Features
-
10.5Height/depth
-
WhiteColour housing
-
IP20Degree of protection (IP)
-
1700Rated luminous flux according to IEC 62722-2-1
- Use where space is limited in the ceiling
- Glare limitation <19 despite low height of 10.5
- Plug&Play connection

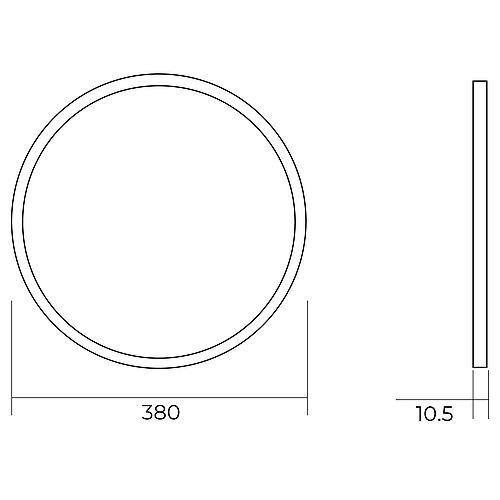

Extra flat round downlight with UGR80, 4000K, D380 x T10.5mm, with 3 spring clamps
BL Downlight UGR Flat
Article 723020
LED ceiling recessed downlight - operating device nein made of high-quality, White coated Aluminium frame; best light quality and homogeneous symmetrical light distribution across the entire light emission surface, protection class IP20 ; Shock resistance , Luminous flux 1700 , Connected load 15 , Luminaire luminous efficacy 113 , Color rendering >80 , Light color White , Color temperature 4000 , Beam angle 90 , Dimensions: 380 x 10.5 , Ceiling cutout 365
| Mechanical data | |
|---|---|
| Material housing | Aluminium |
| Colour housing | White |
| Width | 380 |
| Length | 380 |
| Height/depth | 10.5 |
| Installation diameter | 365 |
| Outer diameter | 380 |
| Mounting method | Einbau mit 3 Federklemmen |
| Reflector | White |
| With movement sensor | nein |
| Lamp type | LED austauschbar |
| Degree of protection (IP) | IP20 |
| With lamp | yes |
| Control gear included | nein |
| Suitable for ceiling mounting | yes |
| Unified Glare Ratio (UGR) | <19 |
| Electrical data | |
|---|---|
| Voltage type | AC |
| Nominal voltage | 230 |
| Overall efficiency | 113 |
| Max. system power | 15 |
| Light technical data | |
|---|---|
| Beam angle | 90 |
| Colour rendering index CRI | >80 |
| Light distribution | symmetrical |
| Rated luminous flux according to IEC 62722-2-1 | 1700 |
| Colour temperature | 4000 |
| Colour of light | White |
| Temperature technical data | |
|---|---|
| Rated life time L80/B10 at 25 °C | 50000 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 94054239 |
| Net weight | 1180 g |
| Gross weight | 1370 g |
| Net width | 380 mm |
| Net height | 380 mm |
| Net length | 10.5 mm |
