Surface-mounted profile BLine P-M-ON02 BL Shine profiles / BLine M / Profiles BLine P-M
BLine P-M-ON02 LED built-on profile Alu silver 29W/m B20 x H20 x L2000 mm coming soon
Top Features
-
AluminiumMaterial
-
29Power consumption
-
20Height
-
20Width
- Profile available in white, black and silver
- Easy installation thanks to customised combinations
- Suitable for LED strips up to 29
- Covers available in satin, black and transparent
Surface mounted profile made of silver anodized aluminum, Power consumption 29W/m, W 20 x H 20 x L 2000 mm
BILTON LEDON Technology Surface-mounted profile BLine P-M-ON02
Article 171885
The Surface-mounted profile BLine P-M-ON02 can be combined with cover C-M-02.
The profile is made of Aluminium with an Silber anodisiert/eloxiert finish and has a power consumption of up to 29 .

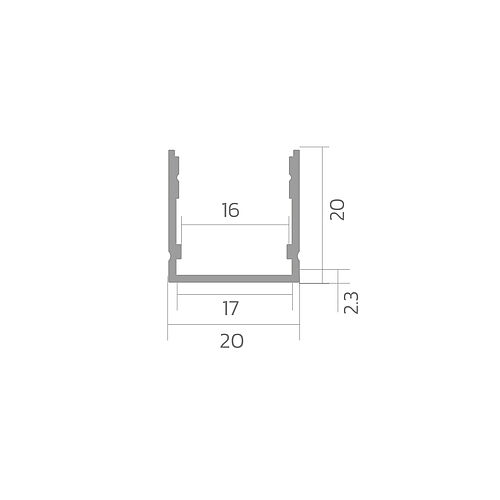

Dimensions (L x W x H): 2000 x 20 x 20
Please note that cutting tolerances of +/- 2mm may occur.
| Mechanical data | |
|---|---|
| Material | Aluminium |
| Width | 20 |
| Length | 2000 |
| Height | 20 |
| Mounting method | Aufbau |
| Colour | Silber |
| Power consumption | 29 |
| Surfacetreatment | anodisiert / eloxiert |
| Temperature technical data | |
|---|---|
| Power consumption | 29 |
| Packaging information | |
|---|---|
| State of origin | CN |
| Customs tariff number | 94054239 |
| Gross width | 170 mm |
| Gross height | 170 mm |
| Gross length | 2050 mm |
| Net width | 20 mm |
| Net height | 20 mm |
| Net length | 2000 mm |
* Our aluminum profiles, plastic profiles, and associated accessories are intended exclusively for use in LED lighting, especially LED strips. They serve as integral components of luminaires and are designed for this purpose. Any other use, especially any misuse outside of LED lighting, is beyond our responsibility. We assume no liability for damages or consequential costs resulting from improper use of our products.
