Recessed profile BLine Select BL Shine profiles / BLine Select / BLine Select HT / Profiles BLine Select HT
Article no.: 170690
BLine Select HT01 LED recessed profile aluminium silver 35W/m W39xH24.4xL2000mm available
Top Features
-
AluminiumMaterial
-
35Power consumption
-
24.4Height
-
39Width
Profile HT, recessed aluminium, 35W/m, L 2000 x W 39 x H 24.4 mm
BILTON LEDON Technology Recessed profile BLine Select
Article 170690
The Recessed profile BLine Select can be combined with all covers from the HT family.
The profile is made of Aluminium with an finish and has a power consumption of up to 35 .

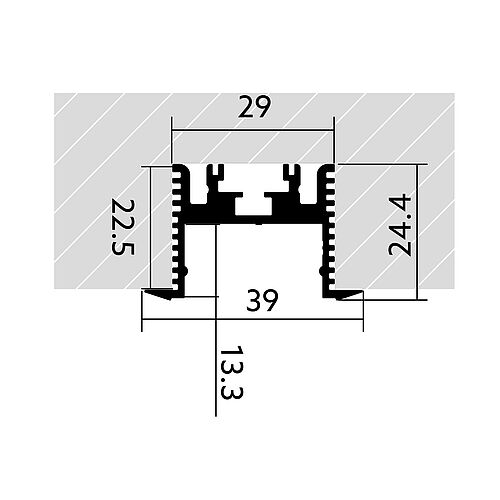

Dimensions (L x W x H): 2000 x 39 x 24.4
Please note that cutting tolerances of +/- 2mm may occur.
| Mechanical data | |
|---|---|
| Material | Aluminium |
| Width | 39 |
| Length | 2000 |
| Height | 24.4 |
| Mounting method | Einbau |
| Colour | lichtgrau |
| Power consumption | 35 |
| Material quality | sonstige |
| Surfacetreatment | anodisiert / eloxiert |
| Temperature technical data | |
|---|---|
| Power consumption | 35 |
| Thermal conductivity | 23.4 |
| Packaging information | |
|---|---|
| State of origin | DE |
| Customs tariff number | 94054239 |
| Net weight | 1222 g |
| Gross weight | 1222 g |
| Net width | 39 mm |
| Net height | 24.4 mm |
| Net length | 2000 mm |
